SAS61.33U | MT Series SAS Electronic Valve Act, SR, 24V, 0-10V / 4-20 mA Proport Control | Siemens

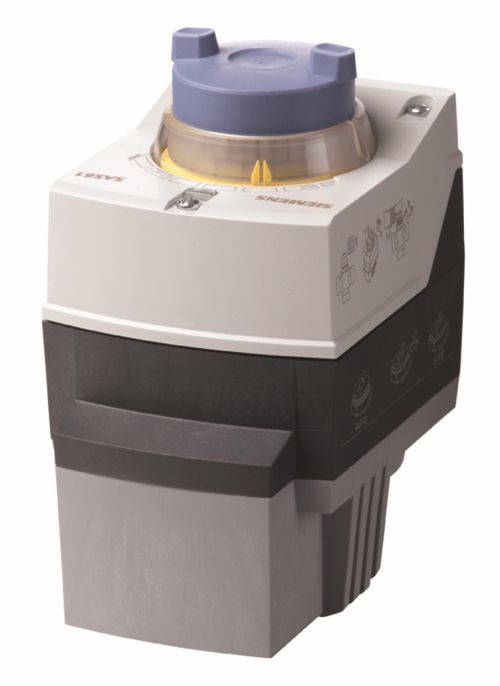

The Powermite 599 MT Series SAS Electronic Valve Actuator requires a 24V supply and receives a 0-10Vdc or 4 to 20 mA control signal to proportionally control a valve. The spring return actuator works with Powermite 599 MT Series terminal unit valves with a 7/32 in. stroke.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to SAS61.33U
Documents and manuals
Siemens SAS61.33U Documents
Datasheet(Powermite MT Series Terminal Unit 2-Way Valves Submittal Sheet)Datasheet(Powermite 599 MT Series Terminal Unit 3-Way Valves. Submittal Sheet)Datasheet(Powermite 599 MT Series Terminal Unit Valve and Assembly Selection Technical Bulletin)Datasheet(Electromotoric actuators for stroke valves SAS..)Datasheet(Powermite 599 MT Series SAS Electronic Valve Actuator 24 Vac or 24 Vdc Proportional Control Technical Instructions)Basic documentation(Actuators SAS... SAT.. for valves)Declaration of conformity(EU Declaration of Conformity SAS31../61../81../MO)Declaration of conformity(RCM Supplier's declaration SAS31../61../81..)Declaration of conformity(Test report EN 10204 (type 2.2))Environmental Declaration(Produkt-Umweltdeklaration / Environmental Product Declaration)Installation instruction(SAS61 Series Electronic Valve Actuators Installation Instructions) Installation Instructions More Info
Overview
Details for SAS61.33U
MT Series SAS Electronic Valve Act, SR, 24V, 0-10V / 4-20 mA Proport Control
Specifications
- Fail Safe
- Yes
- Spring return function
- Spring return functionality
- Position feedback
- DC 0...10 V (SA..6..)
- Power consumption
- 3 VA
- Mounting position
- Upright to horizontal
- Ambient temperature, operation
- -5…55 °C
- Ambient humidity, operation
- 95 % r.h.
- Operating voltage
- 24 VAC/DC
- Supply Voltage
- 24 VAC
- Frequency
- 50/60
- Stroke
- 5.5 mm
- Stroke, mm
- 5.5 mm
- Dimensions (W x H x D)
- 3.66 x 5.94 x 3.15 in
- Degree of protection
- IP54
