QPM2160 | Duct Sensor CO2 and Temperature, 0 to 10V | Siemens
Duct sensor for CO2 concentrations and temperature with a CO2 measuring range over 0 to 2000 parts per million (PPM). This unit delivers a 0 to 10 Volt DC signal with temperature sensing capability delivered as a separate 0 to 10 Volt output. Not suited for safety applications.

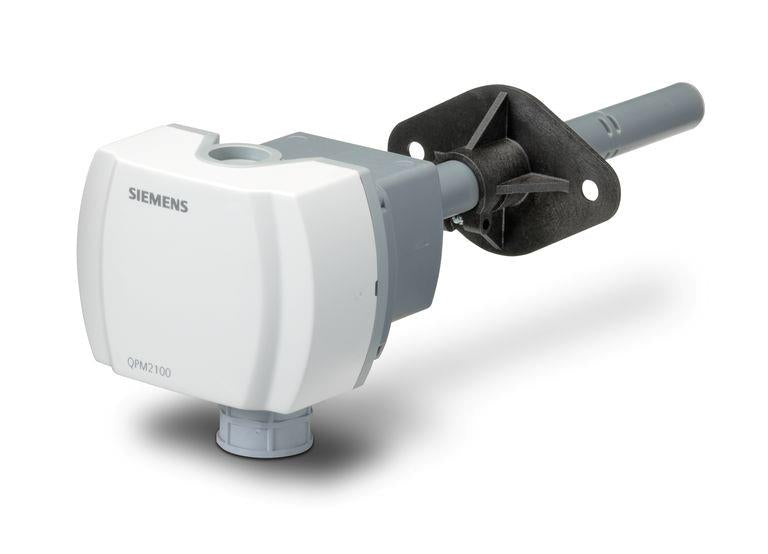

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QPM2160
Documents and manuals
Siemens QPM2160 Documents
Datasheet(QPM Series Indoor Air Quality Duct Sensors Technical Instructions)Datasheet(QPM Series Indoor Air Quality Duct Sensors Technical Specification Sheet)Datasheet(Duct Air Quality Sensors QPM21..)Declaration of conformity(EU Declaration of Conformity QPMxxxx)Declaration of conformity(RCM Supplier's Declaration QPA../QPM../QFA..)Declaration of conformity(UK Declaration of conformity for QPMxxxx)Declaration of conformity(Test report MTBF for QP..)Environmental Declaration(Duct Air Quality Sensor)Installation instruction(QPM… Series Indoor Air Quality Duct Sensors. Installation Instructions)Mounting instruction(Sensor mounting for QPA... QPM..)Mounting instruction(Duct air quality sensor CO2/ temperature / rel. Humidity / VOC QPM11.... QPM21…) Installation Instructions More Info
Overview
Details for QPM2160
Duct Sensor CO2 and Temperature, 0 to 10V
Specifications
- Ambient temperature, operation
- -5…45 °C
- Connection, electrical
- Screw terminals
- Degree of protection
- IP54
- Measuring range, temperature
- 0…50 °C, -35…35 °C
- Operating voltage
- 24 VAC, 15…35 VDC
- Analog outputs
- 0-10V / 4-20mA (selectable)
- Measuring range
- 0…2000 ppm CO₂
- Analog output, signal
- DC 0...10 V, DC 0...5 V, DC 4...20 mA
- Permissible air velocity
- ≤ 10 m/s
- Time constant
- Humidity: 20 s, Temperature: 210 s, CO2: 300 s
