QPA2080D | Room CO2 Sensor selectable resistance temperature output and display. | Siemens

Room CO2 sensor with 0-10V or 4-20mA selectable output for CO2. Temperature out is selectable between 10k Ohm type 2 thermistor, 1k Ohm platinum RTD, 100k Ohm platinum RTD, or 1k Ohm @ 32F nickel RTD. Front mounted LCD display.

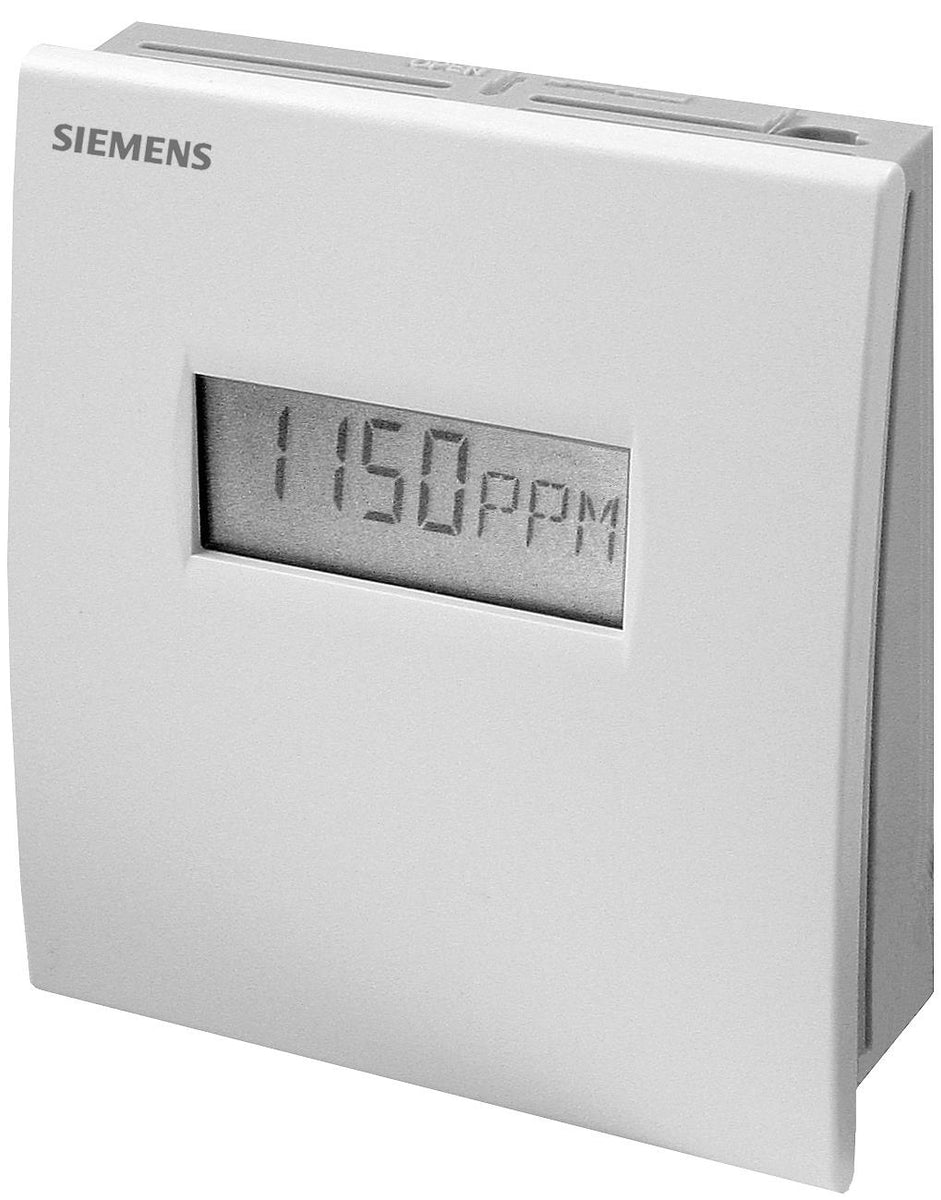

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QPA2080D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens QPA2080D Documents

Datasheet(Indoor Air Quality Sensors QPA10... QPA20..)Declaration of conformity(RCM Supplier's Declaration QPA../QPM../QFA..)Environmental Declaration(Room Air Quality Sensor / Room Sensor / Room Temperature Sensor)Mounting instruction(Sensor mounting for QPA... QPM..)Mounting instruction(Room air quality sensor CO2 / temperature / rel. Humidity QPA10... QPA20) More Info

Overview

Details for QPA2080D

Room CO2 Sensor selectable resistance temperature output and display.

Specifications

Ambient temperature, operation: 0…50 °C
Connection, electrical: Screw terminals
Degree of protection: IP30
Operating voltage: 24 VAC, 15…35 VDC
Analog outputs: 0-10V / 4-20mA (selectable)
Analog output, signal: DC 0...5 V, DC 0...10 V, DC 4...20 mA
Measurement accuracy: Temperature: +/-1.4°F, , Air Quality: +/-50 ppm + 2% of measured value
Dimensions (W x H x D): 90 x 100 x 36 mm
