QPA2060D | Room Sensor CO2 and Temperature with Display, 0 to 10V | Siemens
Room sensor for CO2 concentrations and temperature with a CO2 measuring range over 0 to 2000 parts per million (PPM). This unit delivers a 0 to 10 Volt DC signal with temperature sensing capability delivered as a separate 0 to 10 Volt output, and has a display. Not suited for safety applications.

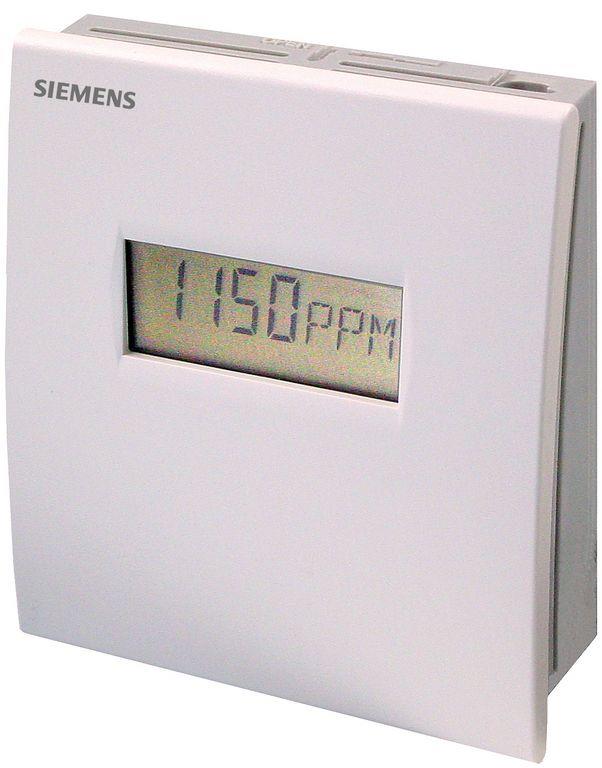

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QPA2060D
Documents and manuals
Siemens QPA2060D Documents
Datasheet(QPA20xx Series Indoor Air Quality Room Sensors Technical Instructions)Datasheet(QPA20… Series Room Air Quality Sensors Technical Instructions)Datasheet(Indoor Air Quality Sensors QPA10... QPA20..)Declaration of conformity(EU Declaration of Conformity QPAxxxx)Declaration of conformity(Testreport/ Werkszeugnis (T. RF & CO2/VOC Sensors))Declaration of conformity(RCM Supplier's Declaration QPA../QPM../QFA..)Declaration of conformity(UK Declaration of conformity for QPAxxxx)Declaration of conformity(Test report MTBF for QP..)Environmental Declaration(Room Air Quality Sensor / Room Sensor / Room Temperature Sensor)Installation instruction(QPA… Series Indoor Air Quality Room Sensors Installation Instructions)Mounting instruction(Sensor mounting for QPA... QPM..)Mounting instruction(Room air quality sensor CO2 / temperature / rel. Humidity QPA10... QPA20) Installation Instructions More Info
Overview
Details for QPA2060D
Room Sensor CO2 and Temperature with Display, 0 to 10V
Specifications
- Ambient temperature, operation
- 0…50 °C
- Connection, electrical
- Screw terminals
- Degree of protection
- IP30
- Operating voltage
- 24 VAC, 15…35 VDC
- Analog outputs
- 0-10V / 4-20mA (selectable)
- Analog output, signal
- DC 0...5 V, DC 0...10 V, DC 4...20 mA
- Measurement accuracy
- Temperature: +/-1.4°F, , Air Quality: +/-50 ppm + 2% of measured value
- Measuring range, temperature
- 0…50 °C, -35…35 °C
- Dimensions (W x H x D)
- 90 x 100 x 36 mm
