QPA2060 | Room Sensor CO2 and Temperature, 0 to 10V | Siemens

Room sensor for CO2 concentrations and temperature with a CO2 measuring range over 0 to 2000 parts per million (PPM). This unit delivers a 0 to 10 Volt DC signal with temperature sensing capability delivered as a separate 0 to 10 Volt output. Not suited for safety applications.

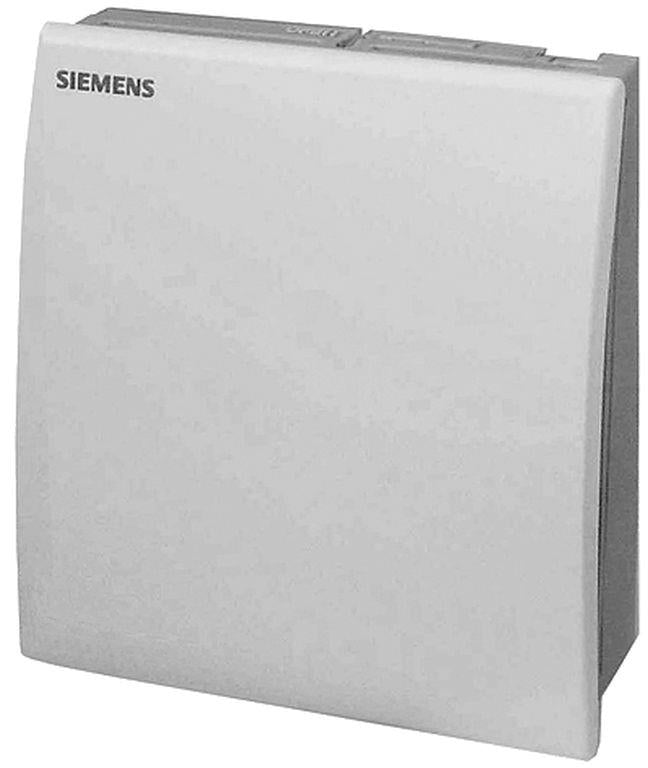

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QPA2060

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens QPA2060 Documents

Datasheet(QPA20xx Series Indoor Air Quality Room Sensors Technical Instructions)Datasheet(QPA20… Series Room Air Quality Sensors Technical Instructions)Datasheet(Indoor Air Quality Sensors QPA10... QPA20..)Declaration of conformity(EU Declaration of Conformity QPAxxxx)Declaration of conformity(Testreport/ Werkszeugnis (T. RF & CO2/VOC Sensors))Declaration of conformity(RCM Supplier's Declaration QPA../QPM../QFA..)Declaration of conformity(UK Declaration of conformity for QPAxxxx)Declaration of conformity(Test report MTBF for QP..)Environmental Declaration(Room Air Quality Sensor / Room Sensor / Room Temperature Sensor)Installation instruction(QPA… Series Indoor Air Quality Room Sensors Installation Instructions)Mounting instruction(Sensor mounting for QPA... QPM..)Mounting instruction(Room air quality sensor CO2 / temperature / rel. Humidity QPA10... QPA20) Installation Instructions More Info

Overview

Details for QPA2060

Room Sensor CO2 and Temperature, 0 to 10V

Specifications

Ambient temperature, operation: 0…50 °C
Connection, electrical: Screw terminals
Degree of protection: IP30
Operating voltage: 24 VAC, 15…35 VDC
Analog outputs: 0-10V / 4-20mA (selectable)
Analog output, signal: DC 0...5 V, DC 0...10 V, DC 4...20 mA
Measurement accuracy: Temperature: +/-1.4°F, , Air Quality: +/-50 ppm + 2% of measured value
Measuring range, temperature: 0…50 °C, -35…35 °C
Dimensions (W x H x D): 90 x 100 x 36 mm
