QFM81.2 | Duct Hygrostat with External Setpoint, 30 - 90% RH | Siemens
Hygrostats are used for controlling and monitoring relative humidity in facilities under HVAC control. They ensure duct humidity control within the selectable range of 15 to 95% relative humidity. The hygrostats do this by controlling humidification or dehumidification equipment. Duct hygrostats can be used as minimum or maximum limiters in the supply air duct.

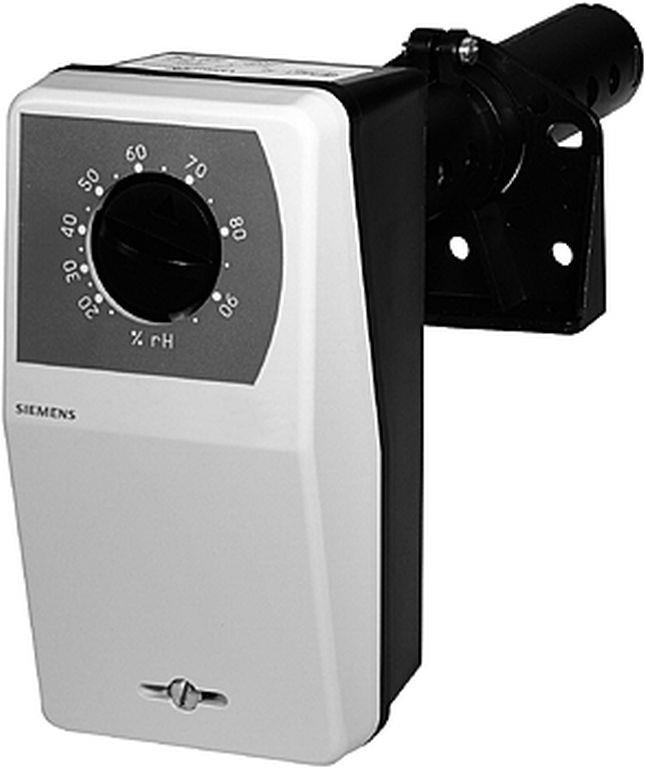

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFM81.2
Documents and manuals
Siemens QFM81.2 Documents
Datasheet(Duct Hygrostats QFM81)Datasheet(QFM81 Series Duct Hygrostats Technical Instructions)Declaration of conformity(EU Declaration of Conformity QFM81.2 / QFM81.21)Environmental Declaration(Hygrostats QFM81.2...)Installation instruction(QFM81.2. QFM81.21 Duct Hygrostats Installation Instructions)Mounting instruction(Duct humidistat) Installation Instructions More Info
Overview
Details for QFM81.2
Duct Hygrostat with External Setpoint, 30 - 90% RH
Specifications
- Degree of protection
- IP30
- Digital outputs
- CO: 1 , Potential-free
- Setpoint setting range
- 15…95 % r.h.
- Switching differential
- 4 % r.h.
- Operating voltage
- Contact Rating: 3A@ 24 Vac/Vdc Max; 100mA Min
- Dimensions (W x H x D)
- 73 x 140 x 64 (246) mm
- Immersion length
- 130…156 mm
- Digital output, switching current
- 5 (3)A
- Digital output, switching voltage
- 250 V
