QFM3171D | DUCT RH & TMP SNSR, 4-20mA, 2%, DISPLAY | Siemens
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SiemensSKU: QFM3171D

Web Price:

$302.99
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

Email

QFM3171D | DUCT RH & TMP SNSR, 4-20mA, 2%, DISPLAY | Siemens

Duct Humidity + Temperature Sensor, 4-20mA, Display, 2% Accuracy, wiith 3 point calibration certificate, +/-2% accuracy, with display

Siemens | QFM3171D

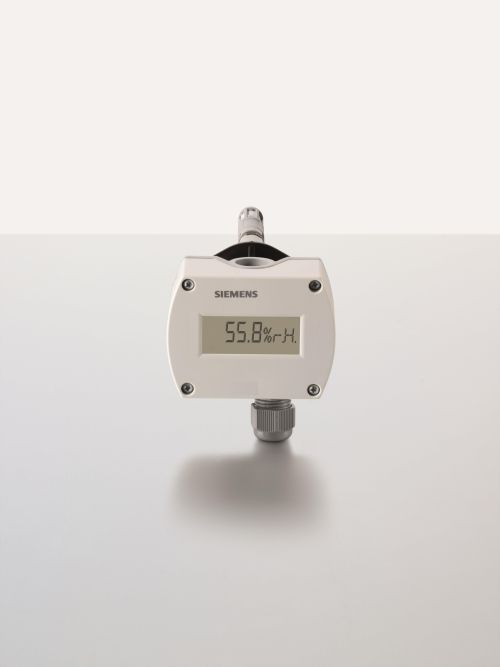

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFM3171D
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens QFM3171D Documents

Datasheet(Duct_Sensor QFM31... with 0…5 V output)Datasheet(Duct Sensor QFM31xx Series Technical Instructions)Datasheet(Duct_Sensor QFM31... w/o 0…5 V output)Declaration of conformity(EU Declaration of Conformity QFM31xx)Declaration of conformity(RCM Supplier's declaration QAM21... / QFM...)Declaration of conformity(UK Declaration of conformity for QFM31xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Environmental Declaration(Duct sensor for relative humidity and temperature)Installation instruction(Q-Series Relative Humidity (RH) and Relative Humidity and Temperature (RH/T) Duct Sensors Installation Instructions)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... with 0…5 V output)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... w/o 0…5 V output) Installation Instructions More Info

Overview

Details for QFM3171D

DUCT RH & TMP SNSR, 4-20mA, 2%, DISPLAY

Specifications

Immersion length
90…206 mm
Measurement range humidity
0…100 % r.h.
Measuring range, temperature
0…50 °C, -35…35 °C, -40…70 °C
Sensing element, temperature
DC 4...20 mA
Signal output humidity
DC 4...20 mA
Signal output temperature
DC 4...20 mA
Operating voltage
13.5…35 VDC
Analog outputs
4-20 mA
Measuring range
Temperature: -40 to 158°F; Humidity: 0 to 100% RH
Measurement accuracy
At 15…35 °C: ±0.6 K, 23 % r.h., 0…100 % r.h.: ±2 % r.h.
Display
LCD
Dimensions (W x H x D)
80 x 88 x 39 (274) mm
