QFM2160U | Duct RH and Temp Sensor, 5 percent accuracy, RH: 0-10 Vdc, T: 0-10 Vdc | Siemens

This Q-Series Duct Relative Humidity & Temperature Sensor monitors and transmits changes in humidity and temperature to the building control system. This unit is especially suited for applications where precise, stable humidity sensing is required. It has a 5 percent accuracy rating, a 0 to 10 Vdc humidity output signal, and a 0 to 10 Vdc temperature signal.

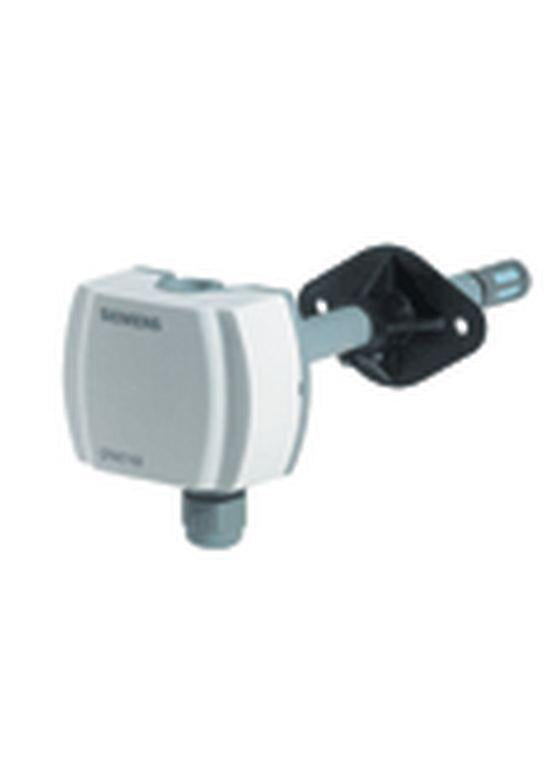

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QFM2160U

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens QFM2160U Documents

Datasheet(Q-Series Duct Relative Humidity and Relative Humidity and Temperature Sensors Technical Specification Sheet)Datasheet(Duct Sensors QFM21xx Series Technical Instructions)Declaration of conformity(EU Declaration of Conformity QFM21xx)Declaration of conformity(RCM Supplier's declaration QAM21... / QFM...)Declaration of conformity(UK Declaration of conformity for QFM21xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Declarations and Certificates(OSS Readme for QAE2164.010. QAE2164.015. QAM2161.040. QFM2100. QFM2120. QFM2160. QFM2160U. QFM3100. QFM3160. QFM3160D. QPM2102. QPM2102D. QPM2163. QPM1162. QPM1160)Environmental Declaration(Duct sensor for relative humidity and temperature)Environmental Declaration(Environmental declarations for QFM2100. QFM2160. QFM2160U. QFM3160. QFM3100. QFM3160D. QFM2120)Installation instruction(Q-Series Relative Humidity (RH) and Relative Humidity and Temperature (RH/T) Duct Sensors Installation Instructions) Installation Instructions More Info

Overview

Details for QFM2160U

Duct RH and Temp Sensor, 5 percent accuracy, RH: 0-10 Vdc, T: 0-10 Vdc

Specifications

Analog outputs: 0-10 V
Measuring range: Temperature: -40 to 158°F; Humidity: 0 to 95% RH
Measurement accuracy: Temperature: +/-1°F between 60 to 95°F, +/-1.8°F between 95 to 122°F; , Humidity: +/-3% between 30-70% RH, +/-5% outside this range
