QFM3160 | Duct RH and Temp Sensor, 2 percent (high) accuracy, RH: 0-10 Vdc, T: 0-10 Vdc | Siemens

This Q-Series Duct Relative Humidity & Temperature Sensor monitors and transmits changes in humidity and temperature to the building control system. This unit is especially suited for applications where precise, stable humidity sensing is required. It has a 2 percent accuracy rating, a 0 to 10 Vdc humidity output signal, and a 0 to 10 Vdc temperature signal.

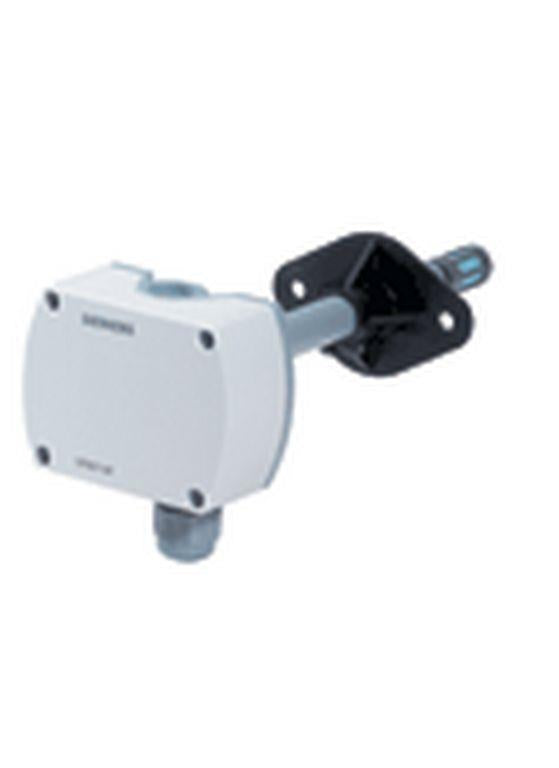

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to QFM3160

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens QFM3160 Documents

Datasheet(Duct_Sensor QFM31... with 0…5 V output)Datasheet(Q-Series Duct Relative Humidity and Relative Humidity and Temperature Sensors Technical Specification Sheet)Datasheet(Duct Sensor QFM31xx Series Technical Instructions)Datasheet(Duct_Sensor QFM31... w/o 0…5 V output)Declaration of conformity(EU Declaration of Conformity QFM31xx)Declaration of conformity(RCM Supplier's declaration QAM21... / QFM...)Declaration of conformity(UK Declaration of conformity for QFM31xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Declarations and Certificates(OSS Readme for QAE2164.010. QAE2164.015. QAM2161.040. QFM2100. QFM2120. QFM2160. QFM2160U. QFM3100. QFM3160. QFM3160D. QPM2102. QPM2102D. QPM2163. QPM1162. QPM1160)Environmental Declaration(Duct sensor for relative humidity and temperature)Environmental Declaration(Environmental declarations for QFM2100. QFM2160. QFM2160U. QFM3160. QFM3100. QFM3160D. QFM2120)Installation instruction(Q-Series Relative Humidity (RH) and Relative Humidity and Temperature (RH/T) Duct Sensors Installation Instructions)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... with 0…5 V output)Mounting instruction(Duct sensor for rel. humidity / temperature QFM... w/o 0…5 V output) Installation Instructions More Info

Overview

Details for QFM3160

Duct RH and Temp Sensor, 2 percent (high) accuracy, RH: 0-10 Vdc, T: 0-10 Vdc

Specifications

Immersion length: 90…206 mm
Measurement range humidity: 0…100 % r.h.
Measuring range, temperature: 0…50 °C, -35…35 °C, -40…70 °C
Sensing element, temperature: DC 0...10 V
Signal output humidity: DC 0...10 V, DC 4...20 mA
Signal output temperature: DC 0...10 V, DC 4...20 mA
Operating voltage: 24 VAC, 13.5…35 VDC
Analog outputs: 0-10 V
Measuring range: Temperature: -40 to 158°F; Humidity: 0 to 100% RH
Measurement accuracy: At 15…35 °C: ±0.6 K, 23 % r.h., 0…100 % r.h.: ±2 % r.h.
Dimensions (W x H x D): 80 x 88 x 39 (274) mm
