QFA4171D | ROOM RH&T SNSR, 4-20mA, 2%, DSPLAY, CERT | Siemens
This Q-Series Outdoor Air Relative Humidity and Relative Humidity & Temperature Sensor with LCD display monitors and transmits changes in humidity and temperature to the building control system. This unit is especially suited for HVAC applications where high accuracy and short response times for measuring relative humidity are required. It has a 2 percent certified accuracy, a 4 to 20 mA humidity output signal, and a 4 to 20 mA temperature output signal.

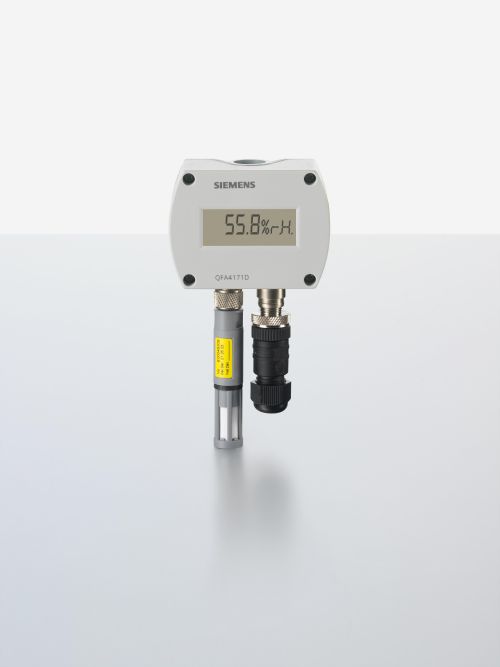

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFA4171D
Documents and manuals
Siemens QFA4171D Documents
Datasheet(Room_sensor QFA41..)Datasheet(QFA3100_4100 Series RH Sensors for Critical Environments or Outdoor Use Technical Specification Sheet)Declaration of conformity(EU Declaration of Conformity QFA41xx/AQF41xx)Declaration of conformity(RCM Supplier's Declaration QPA../QPM../QFA..)Declaration of conformity(UK Declaration of conformity for QFA41xx/AQF41xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Environmental Declaration(Room sensor for relative humidity and temperature)Installation instruction(Q-Series Outdoor Air Relative Humidity and Relative Humidity and Temperature Sensors Installation Instructions) Installation Instructions More Info
Overview
Details for QFA4171D
ROOM RH&T SNSR, 4-20mA, 2%, DSPLAY, CERT
Specifications
- Measurement range humidity
- 0…100 % r.h.
- Measuring range, temperature
- 0…50 °C, -35…35 °C, -40…70 °C
- Time constant
- Humidity: 20 s, Temperature: 510 s
- Signal output humidity
- DC 4...20 mA
- Signal output temperature
- DC 4...20 mA
- Operating voltage
- 13.5…35 VDC
- Analog outputs
- 4-20 mA
- Measuring range
- Temperature: -40 to 158°F; Humidity: 0 to 100% RH
- Measurement accuracy
- At 15…35 °C: ±0.6 K, 23 % r.h., 0…100 % r.h.: ±2 % r.h.
- Communication
- Includes 3-point calibration certificate
- Display
- LCD
- Dimensions (W x H x D)
- 80 x 144 x 39 mm
