QFA4160 | Outside Air RH and Temp Sensor, 2 percent certified, RH: 0-10 Vdc, T: 0-10 Vdc | Siemens
This Q-Series Outdoor Air Relative Humidity and Relative Humidity & Temperature Sensor monitors and transmits changes in humidity and temperature to the building control system. This unit is especially suited for HVAC applications where high accuracy and short response times for measuring relative humidity are required. It has a 2 percent certified accuracy, a 0 to 10 Vdc humidity output signal, and a 0 to 10 Vdc temperature output signal.

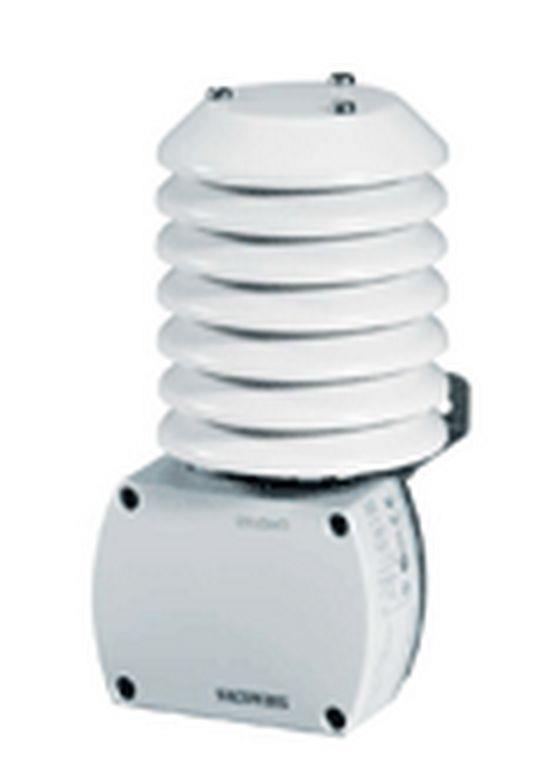

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QFA4160
Documents and manuals
Siemens QFA4160 Documents
Datasheet(Room_sensor QFA41..)Datasheet(QFA3100_4100 Series RH Sensors for Critical Environments or Outdoor Use Technical Specification Sheet)Datasheet(Q-Series Relative Humidity and Relative Humidity and Temperature Sensors for Critical Environments and Outdoor Air Technical Instructions)Declaration of conformity(EU Declaration of Conformity QFA41xx/AQF41xx)Declaration of conformity(RCM Supplier's Declaration QPA../QPM../QFA..)Declaration of conformity(UK Declaration of conformity for QFA41xx/AQF41xx)Declaration of conformity(Test report MTBF for QFM... QFA..)Environmental Declaration(Room sensor for relative humidity and temperature)Installation instruction(Q-Series Outdoor Air Relative Humidity and Relative Humidity and Temperature Sensors Installation Instructions) Installation Instructions More Info
Overview
Details for QFA4160
Outside Air RH and Temp Sensor, 2 percent certified, RH: 0-10 Vdc, T: 0-10 Vdc
Specifications
- Measurement range humidity
- 0…100 % r.h.
- Measuring range, temperature
- 0…50 °C, -35…35 °C, -40…70 °C
- Time constant
- Humidity: 20 s, Temperature: 20 s
- Signal output humidity
- DC 0...10 V
- Signal output temperature
- DC 0...10 V
- Operating voltage
- 24 VAC, 13.5…35 VDC
- Analog outputs
- 0-10 V
- Measuring range
- Temperature: -40 to 158°F; Humidity: 0 to 100% RH
- Measurement accuracy
- At 15…35 °C: ±0.6 K, 23 % r.h., 0…100 % r.h.: ±2 % r.h.
- Communication
- Includes 3-point calibration certificate
- Display
- Not applicable
- Dimensions (W x H x D)
- 80 x 144 x 39 mm
