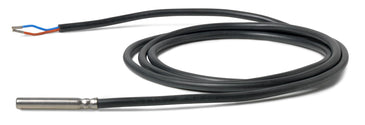

QAP2012.150 | Cable Temperature Sensor, Platinum 1K Ohm (385 Alpha) | Siemens
Cable Temperature Sensor with Platinum 1K Ohm (385 alpha) sensing element. The sensor cable measures five feet.
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to QAP2012.150
Documents and manuals
Siemens QAP2012.150 Documents
Datasheet(Cable temperature sensor QAP22)Datasheet(Surface Mount Temperature Sensors Technical Specification Sheet)Declaration of conformity(EU Declaration of Conformity QAxxx (passive senors))Declaration of conformity(UKCA Declaration of Conformity Passive temperature sensors QAxxx)Declaration of conformity(Test report MTBF for QA..)Environmental Declaration(Sensors. passive QA... FGT-PT1000)Mounting instruction(Cable temperature sensor / Kabeltemperaturfühler QAP..)Other datasheet(Cable temperature sensor QAP21.2) More Info
Overview
Details for QAP2012.150
Cable Temperature Sensor, Platinum 1K Ohm (385 Alpha)
Cable Temperature Sensor with Platinum 1K Ohm (385 alpha) sensing element. The sensor cable measures five feet.Specifications
- Material, protection pocket
- Stainless steel
- Protection pocket
- 40.5 mm; 6 mm
- Type of fixing
- Cable tie or with accessories
- Analog outputs
- Pt RTD, 1k Ohm, 385a
- Measuring range
- -22 to 266 °F
- Sensor
- RTD with 5 foot cable
- Measuring range, temperature
- -30…130 °C
- Sensing element, temperature
- Pt1000
- Sensing element
- Pt1000
- Measurement accuracy
- +/-0.72°F @ 32 °F
- Time constant
- Without protection pocket: 20 s
- Material, protection pocket
- Stainless steel
- Connection cable
- Silicone
- Cable length
- 1.5 m
