MXG461.20-5.0U | Magnetic 3/4"Valve, 2-way or floating, 5.9 Cv, 0 to 10V control, w/ NPT unions | Siemens
This MX Control Valve with Electronic Modules is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This 3/4' valve can be configured for straight-through or floating applications and has a 5.9 Cv and 43 psi close-off. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, auto calibration, dip switch selectable signal input and flow characteristic, and built-in position feedback. The valve includes NPT union fittings and blanking flange. UL and C-UL listed.

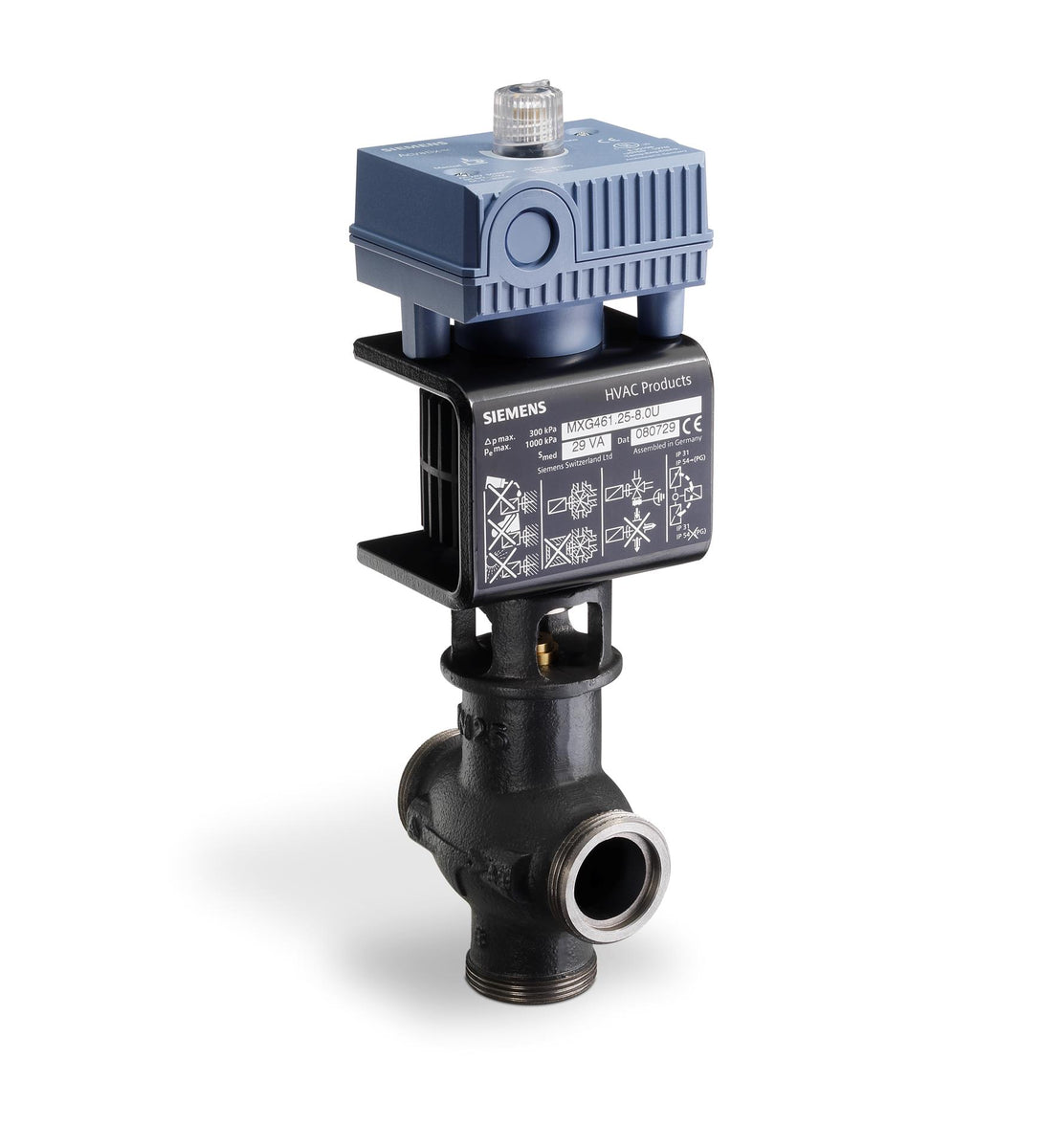

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MXG461.20-5.0U
Documents and manuals
Overview
Details for MXG461.20-5.0U
Magnetic 3/4"Valve, 2-way or floating, 5.9 Cv, 0 to 10V control, w/ NPT unions
Specifications
- Medium
- Water
- Medium temperature
- 34…266 ºF
- Dimensions (W x H x D)
- 3 x 12 x 3 in
