MVF461H40-20 | Magnetic Valve, 1-1/2", 2-way, 23.4 Cv, 0 to 10V control, w/o Flange Kits | Siemens

This MVF461H valve with magnetic actuator is defined for 0 to 10V control of high-temperature hot water or steam. The valve features fast positioning time less than 2 seconds, selectable valve characteristic, and 1000:1 resolution and rangeability. Electronic module for positioning control and position feedback signal. Spring returns closed when de-energized. Manual control. This 1-1/2" valve has a 23.4 Cv and comes without flange kits.

Brand: SiemensSKU: MVF461H40-20

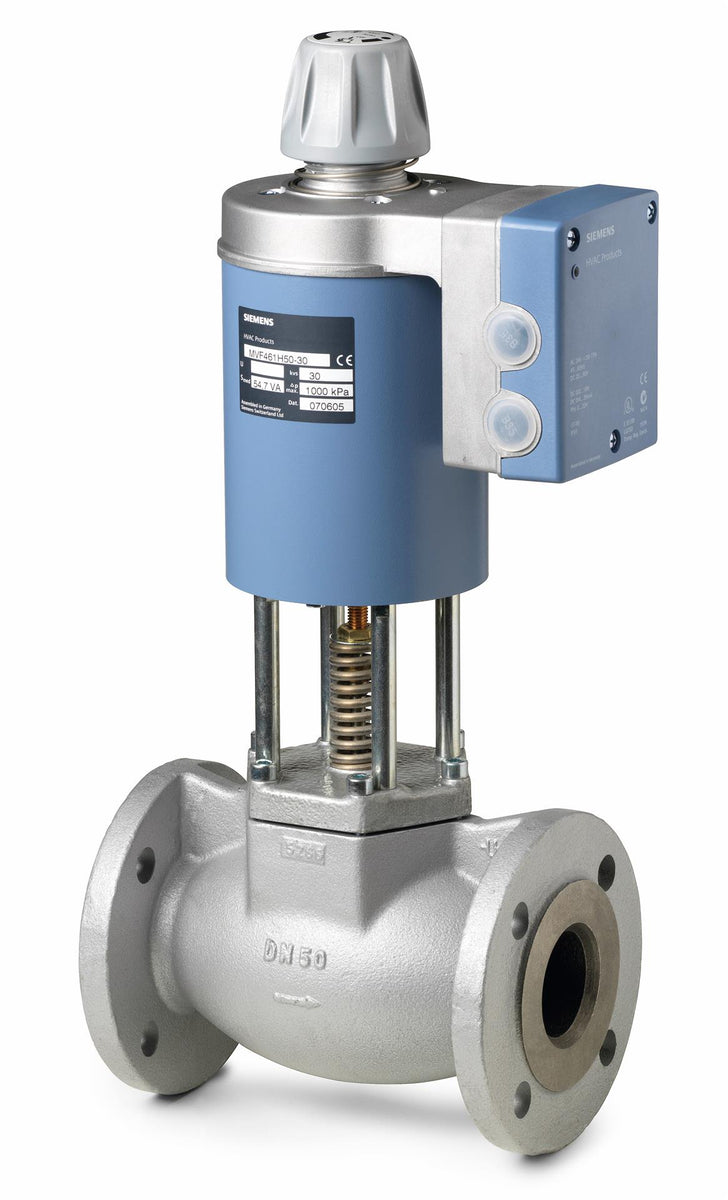

Siemens | MVF461H40-20
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to MVF461H40-20
Jump to: Overview & Specifications Reviews

Overview Details for MVF461H40-20

Magnetic Valve, 1-1/2", 2-way, 23.4 Cv, 0 to 10V control, w/o Flange Kits

Specifications

Ambient temperature, operation
-5…45 °C
Degree of protection
IP31
kvs
20 m³/h
Leakage rate
0.05 % of kvs
Material, inside set
CrNi steel
Material, valve body
Nodular cast iron EN-GJS-400-18-LT
Medium temperature
1…180 °C; 34…356 ºF
Mounting position
Upright to horizontal
Nominal pressure
PN 16
Operating voltage
24 VAC, 24 VDC
Permissible operating pressure
Liquid, max: 1300 kPa; Steam, max: 900 kPa
Position feedback
DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA
Positioning signal
DC 0...10 V, DC 2...10 V, DC 0...20 mA, DC 4...20 mA, DC 0...20 V Phs
Positioning time
2 s
Power consumption
65 VA
Spring return function
A-> AB closed
Valve characteristic
Equal-percentage , Linear
Δpmax
1000 kPa
Δps
1000 kPa
Operating range
DC 0…10 V, 0…20 mA, DC 2…10 V, 4…20 mA
Absolute pressure p1 steam
900 kPa abs
Medium
Steam , Water , Saturated steam
Stroke resolution ΔH/H100
1:1000
Material, valve body
Cast iron EN-GJS-400-18-LT
Dimensions (W x H x D)
8.9 x 18.74 x 5.91 in
DN
40
