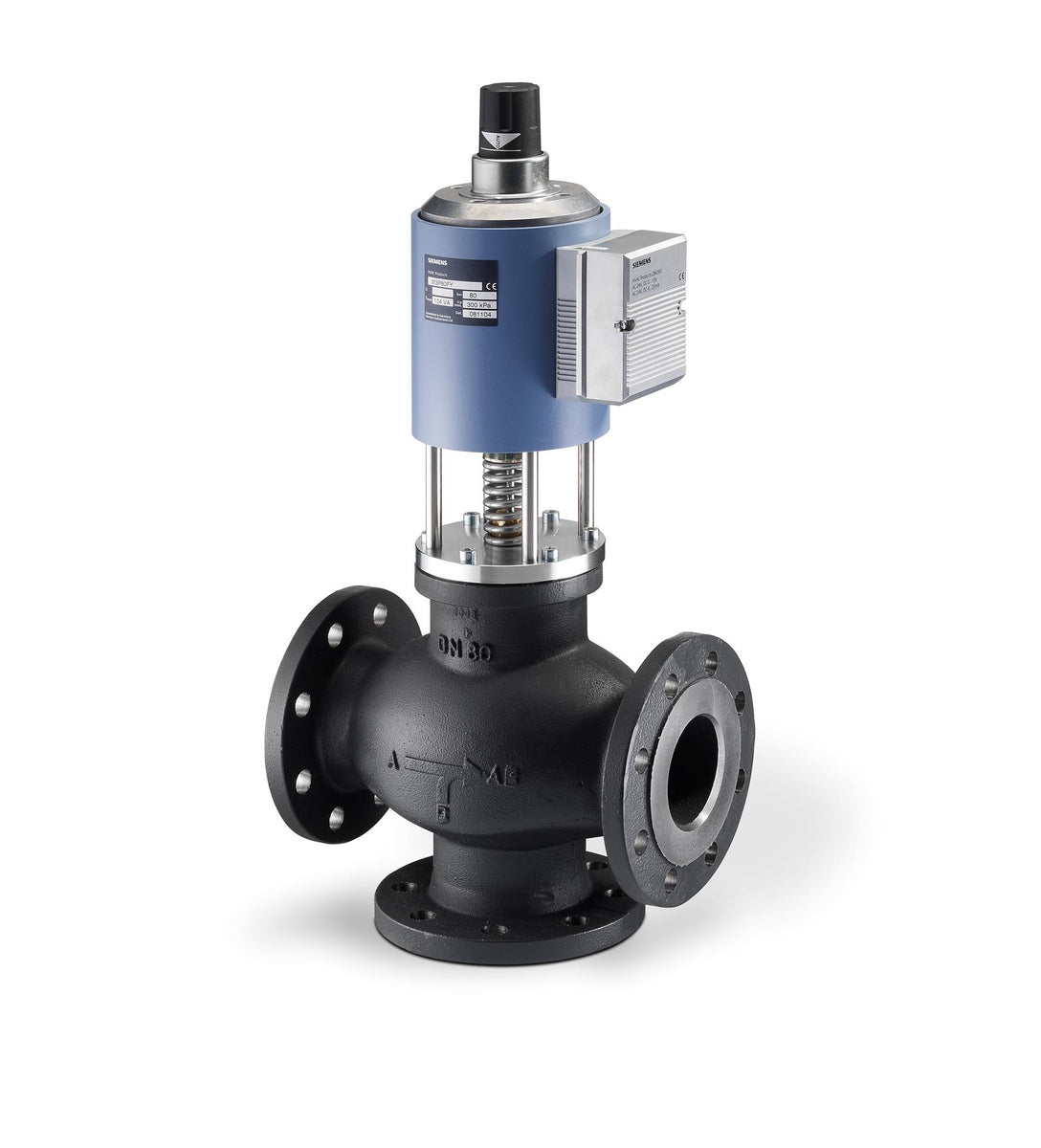

M3P100FY | Magnetic, 4" Valve, floating, 152 Cv, 0 to 10V control, w/o Flange kits | Siemens

This Magnetic M3P Control Valve with ZM Signal Module is designed for 0 to 10V control of chilled water and low-pressure hot water, especially in HVAC systems. This valve features pilot position and magnetic actuation that is used to enhance response time and provide stability. The 4" valve has a 152 Cv and can be configured 3-Way or straight-through and comes without flange kits. This valve has 1000:1 resolution and a positioning time is ≤ 1 second, manual override, and built-in position control and feedback.

Brand: SiemensSKU: M3P100FY
Siemens | M3P100FY
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3P100FY
Jump to: Overview & Specifications Reviews

Overview Details for M3P100FY

Magnetic, 4" Valve, floating, 152 Cv, 0 to 10V control, w/o Flange kits

Specifications

Operating range
DC 0…10 V
Leakage rate bypass
2 % of kvs
Medium
Water
Stroke resolution ΔH/H100
1:1000
Material, valve body
Cast iron EN-GJL-HB215
Δps
200 kPa
Ambient temperature, operation
2…50 °C
Degree of protection
IP31
Leakage rate
0.05 % of kvs
Material, inside set
CrNi steel/brass
Material, valve body
EN-GJL-HB215
Medium temperature
2…120 °C; 35…248 ºF
Mounting position
Upright to horizontal
Nominal pressure
PN 16
Operating voltage
24 VAC
Position feedback
DC 0…10 V
Positioning signal
DC 0...10 V, DC 4...20 mA
Positioning time
Close:2 s
Power consumption
120 VA
Spring return function
1->3 closed
Valve characteristic
Linear
Δpmax
200 kPa
Dimensions (W x H x D)
13.78 x 28.74 x 8.66 in
kvs
130 m³/h
DN
100
