M3FB20LX/A | 0 to 10V 3/4"Valve, Hot Gas Bypass, 5.8 Cv, 460 PSI | Siemens

This M3FB Magnetic Valve is used for refrigeration applications. This 0 to 10V diverting valve is suitable for hot gas bypass and heat-recovery applications. This 3/4" valve has a 5.8 Cv, a maximum operating pressure of 460 psi and must be applied to closed loop applications.

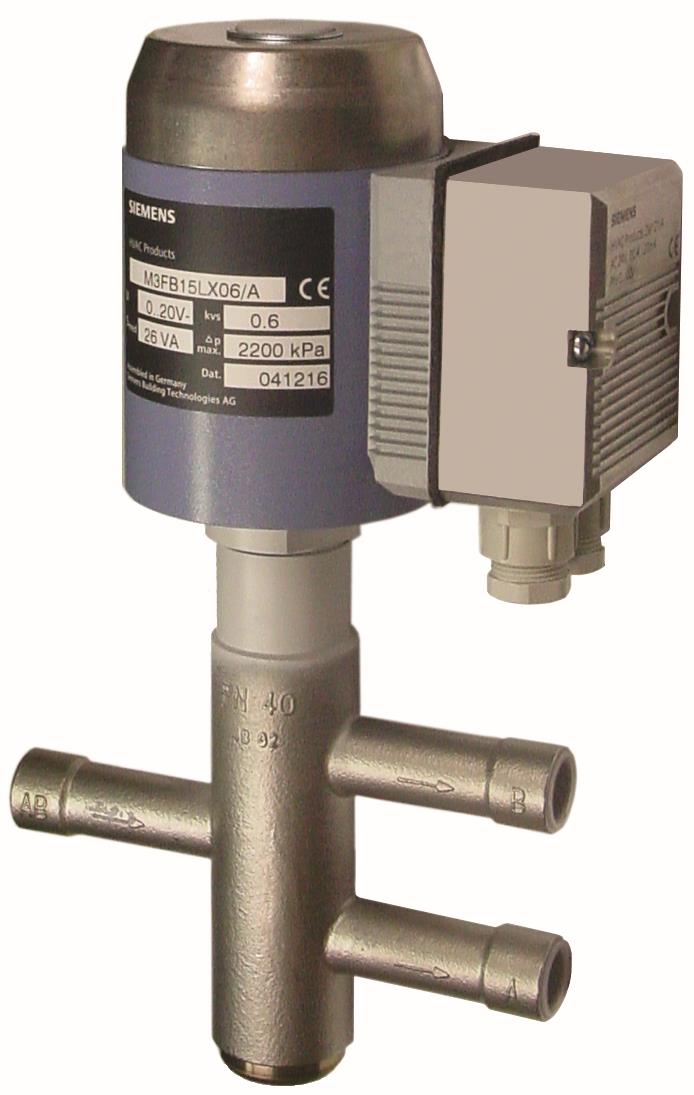

Siemens | M3FB20LX/A
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3FB20LX/A
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens M3FB20LX/A Documents

Datasheet(Modulating refrigerant valves‚ PS43. M3FB..LX..)Datasheet(M3FB…LX… Series Modulating Control Valve for Hot Gas Control Technical Instructions)Declaration of conformity(CE declaration M3FB..)Declaration of conformity(Test report EN 10204 (type 2.2). M3FB..LX..)Declaration of conformity(UKCA Conformity Declaration Electromagnetic valve actuators M3FB..)Mounting instruction(Modulating refrigerant valves with magnetic actuator‚ PS43. M3FB..LX..) More Info

Overview

Details for M3FB20LX/A

0 to 10V 3/4"Valve, Hot Gas Bypass, 5.8 Cv, 460 PSI

Specifications

Power consumption
26 VA
Stroke resolution ΔH/H100
1:200
Material, valve body
Steel
Ambient temperature, operation
-40…50 °C
Degree of protection
IP54
Leakage rate
0.05 % of kvs
Material, inside set
CrNi steel/brass
Material, valve body
Steel
Medium temperature
-40…120 °C; -40…248 ºF
Mounting position
Any
Nominal pressure
PN 32
Operating voltage
24 VAC
Permissible operating pressure
4300 kPa
Positioning signal
DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
Positioning time
1 s
Spring return function
AB-> A closed
Valve characteristic
Linear
Δpmax
1800 kPa
Dimensions (W x H x D)
7.09 x 13.27 x 4.02 in
kvs
5 m³/h
DN
20
