Documents: M3FB15LX/A
Datasheet(Modulating refrigerant valves‚ PS43. M3FB..LX..)Datasheet(M3FB…LX… Series Modulating Control Valve for Hot Gas Control Technical Instructions)Declaration of conformity(CE declaration M3FB..)Declaration of conformity(Test report EN 10204 (type 2.2). M3FB..LX..)Declaration of conformity(UKCA Conformity Declaration Electromagnetic valve actuators M3FB..)Mounting instruction(Modulating refrigerant valves with magnetic actuator‚ PS43. M3FB..LX..) More Info
M3FB15LX/A | 0 to 10V 1/2" Valve, Hot Gas Bypass, 3.50 Cv, 460 PSI | Siemens
This M3FB Magnetic Valve is used for refrigeration applications. This 0 to 10V diverting valve is suitable for hot gas bypass and heat-recovery applications. This 1/2" valve has a 3.50 Cv, a maximum operating pressure of 460 psi and must be applied to closed loop applications.

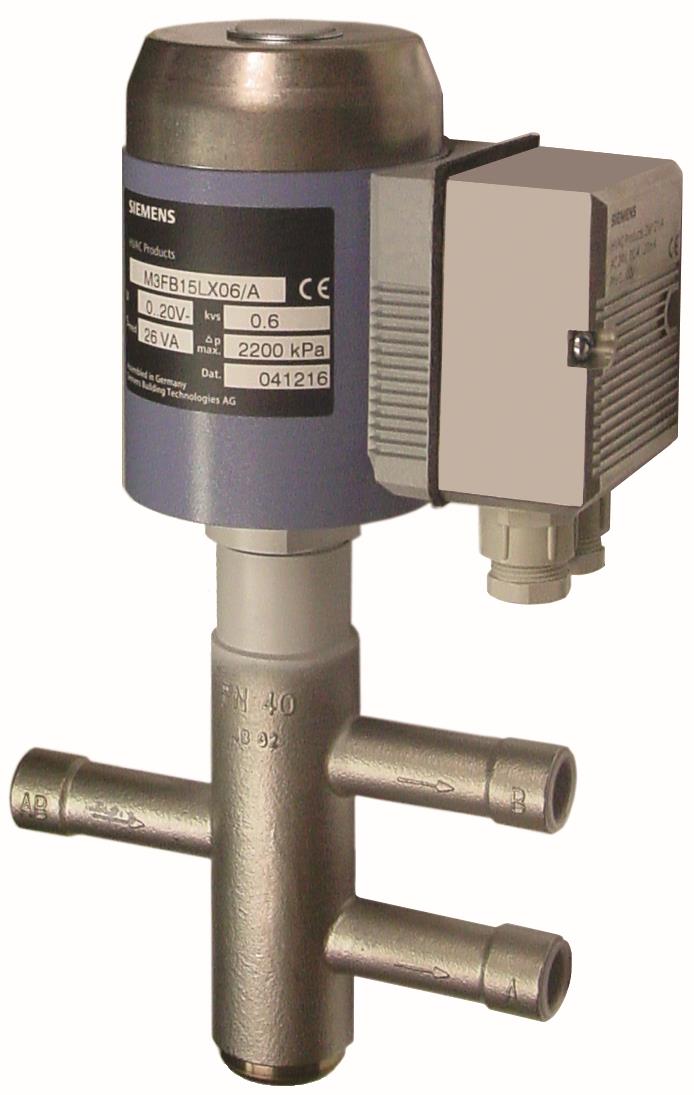

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to M3FB15LX/A
Overview Details for M3FB15LX/A
0 to 10V 1/2" Valve, Hot Gas Bypass, 3.50 Cv, 460 PSI
Specifications
- Power consumption
- 26 VA
- Stroke resolution ΔH/H100
- 1:200
- Material, valve body
- Steel
- Ambient temperature, operation
- -40…50 °C
- Degree of protection
- IP54
- Leakage rate
- 0.05 % of kvs
- Material, inside set
- CrNi steel/brass
- Material, valve body
- Steel
- Medium temperature
- -40…120 °C; -40…248 ºF
- Mounting position
- Any
- Nominal pressure
- PN 32
- Operating voltage
- 24 VAC
- Permissible operating pressure
- 4300 kPa
- Positioning signal
- DC 0...10 V, DC 4...20 mA, DC 0...20 V Phs
- Positioning time
- 1 s
- Spring return function
- AB-> A closed
- Valve characteristic
- Linear
- Δpmax
- 2200 kPa
- Dimensions (W x H x D)
- 6.3 x 10.79 x 3.23 in
- kvs
- 3 m³/h
- DN
- 15
