GIB132.1U | Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 310 lb-in | Siemens
OpenAir™ GIB Series Electric Damper Actuator, rotary, non-spring return, 310 lb-in (35 Nm), 24 Vac/dc, floating control, 125 sec run time, position feedback

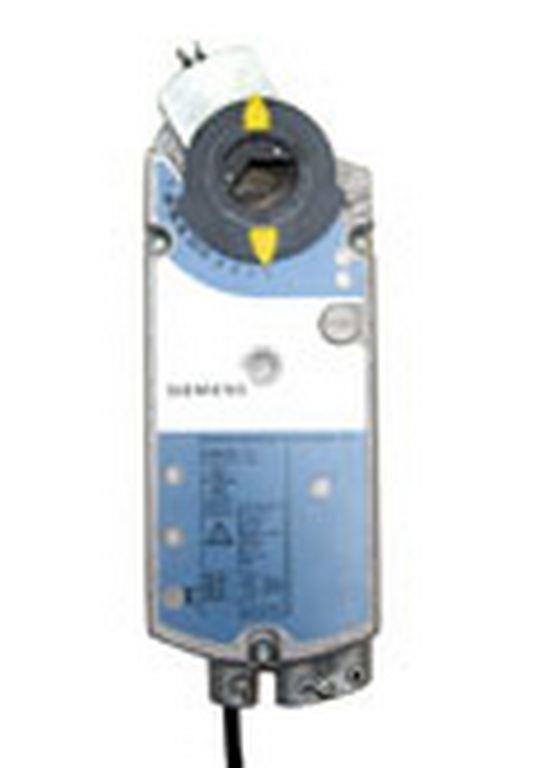

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GIB132.1U
Documents and manuals
Siemens GIB132.1U Documents
Datasheet(OpenAir™ GIB Series NSR Damper . Submittal Sheet)Datasheet(OpenAir GBB / GIB Series Electronic Damper Actuators. Non Spring Return. 24 Vac. Floating Control. Rotary Technical Instructions)Datasheet(OpenAir Damper Actuator Spring Return Electronic Damper Actuators Competitive Wiring Guide)Declaration of conformity(Gap Med Comm Declaration of Conformity)Installation instruction(OpenAir GBB / GIB Series Non Spring Return Rotary Electronic Damper Actuators Installation Instructions)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..)Dimension Drawings(Rotary air damper actuator without spring return GBB..) Installation Instructions More Info
Overview
Details for GIB132.1U
Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 310 lb-in
OpenAir™ GIB Series Electric Damper Actuator, rotary, non-spring return, 310 lb-in (35 Nm), 24 Vac/dc, floating control, 125 sec run time, position feedbackSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 310 lb-in
- Spring return function
- Non-spring return functionality
- Positioning time
- 50 Hz:150 s, 60 Hz:125 s
- Position feedback
- Yes
- Power consumption
- 7 VA / 7 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 24 VAC/DC
- Frequency
- 50/60 Hz
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 3.94 x 11.81 x 2.69 in
- Material, housing
- NEMA 1, die-cast aluminum alloy enclosure
- Degree of protection
- IP92
