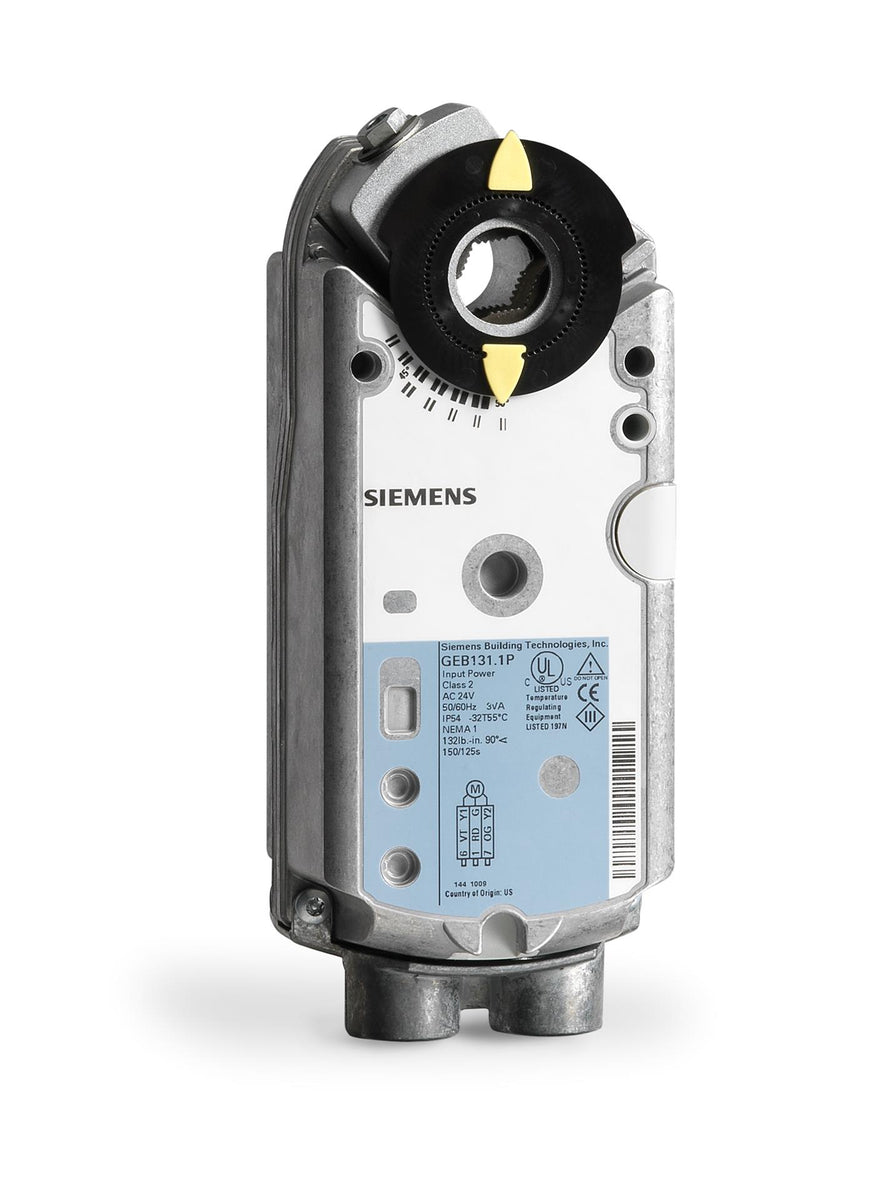

GEB341.1U | Damper Actuator | Non-Spring Return | 24 VAC | 0-10/2-10 Vdc | 132 lb-in | Siemens
Damper actuator non-spring return, 177 lb-in, 2-position/Floating control. 120 to 240 VAC . For use on control dampers
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GEB341.1U
Documents and manuals
Siemens GEB341.1U Documents
Datasheet(OpenAir GEB Series Enhanced Rotary NSR Damper Actuators Technical Instructions)Datasheet(OpenAir GEB Enhanced Series NSR 177 lb-in Direct Coupled Electronic Damper Actuators Submittal Sheet)Declaration of conformity(RCM Suplier's Declaration GEB…)Declaration of conformity(CE Declaration GEB...)Environmental Declaration(Damper Actuator GAP Small MK3 / OpenAirTm. GEB..1..)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..) Installation Instructions More Info
Overview
Details for GEB341.1U
Damper Actuator | Non-Spring Return | 24 VAC | 0-10/2-10 Vdc | 132 lb-in
Damper actuator non-spring return, 177 lb-in, 2-position/Floating control. 120 to 240 VAC . For use on control dampersSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 132 lb-in
- Positioning time
- 50 Hz:150 s, 60 Hz:125 s
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 24 VAC
- Frequency
- 50/60 Hz
- Dimensions (W x H x D)
- Actuator: 3-1/4 W x 8-3/8 H x 2-3/8 D in. Shaft Diameter: 1/4 to 3/4 in. round, 1/4 to 1/2 in. square; Shaft Length Min: 3/4 in
