GEB142.1U | Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 132 lb-in | Siemens

Damper actuator non-spring return, 177 lb-in, 2-position/Floating control. 24VAC/DC with built-in position feedback 0 to 5,000 ohm. For use on control dampers

Brand: SiemensSKU: GEB142.1U

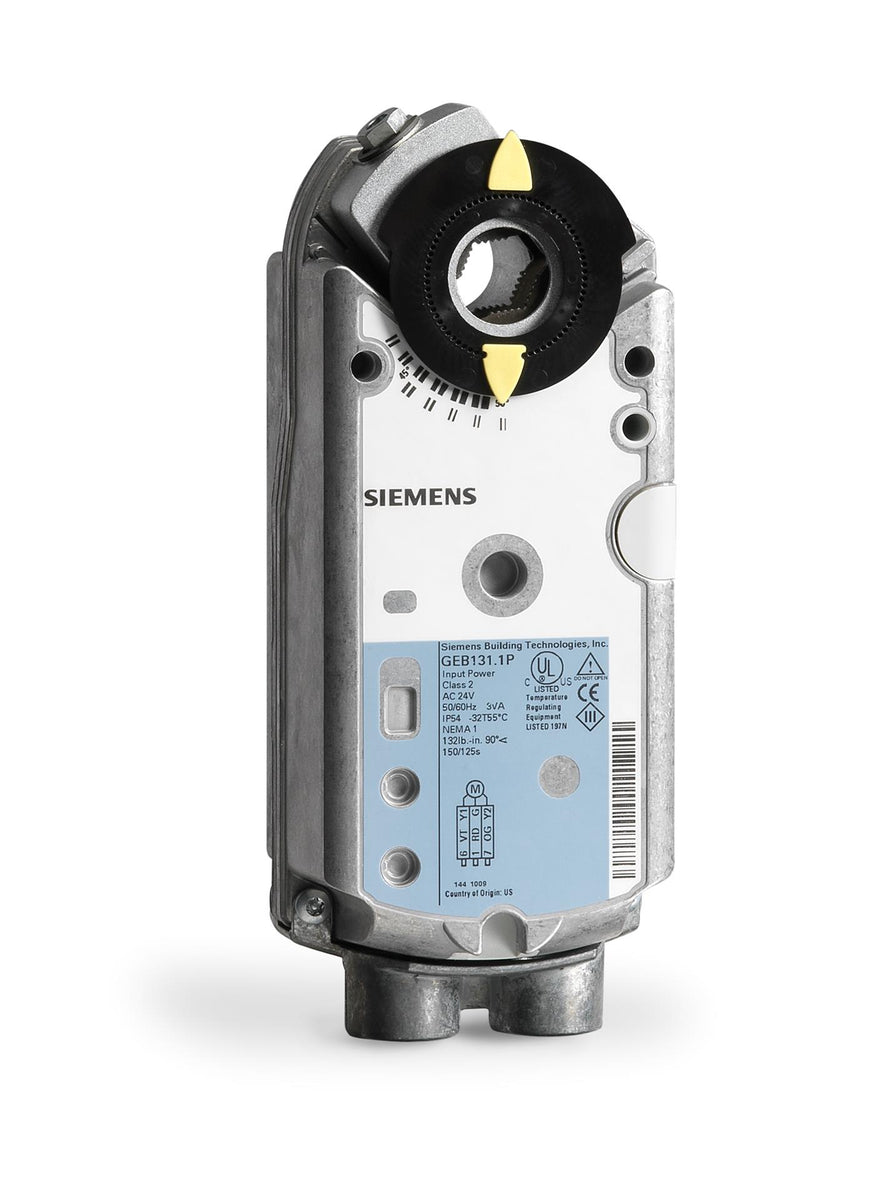

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GEB142.1U

Jump to: Overview & Specifications Reviews

Overview Details for GEB142.1U

Damper Actuator | Non-Spring Return | 24 VAC | On/Off/Floating Point | 132 lb-in

Damper actuator non-spring return, 177 lb-in, 2-position/Floating control. 24VAC/DC with built-in position feedback 0 to 5,000 ohm. For use on control dampers

Specifications

Control or Fire/Smoke Type: Control Damper
Torque: 132 lb-in
Positioning time: 50 Hz:150 s, 60 Hz:125 s
Ambient humidity, operation: 95 % r.h.
Angular rotation: 90°
Operating voltage: 24 VAC
Frequency: 50/60 Hz
Cable length: 3 ft
Dimensions (W x H x D): Actuator: 3-1/4 W x 8-3/8 H x 2-3/8 D in. Shaft Diameter: 1/4 to 3/4 in. round, 1/4 to 1/2 in. square; Shaft Length Min: 3/4 in
