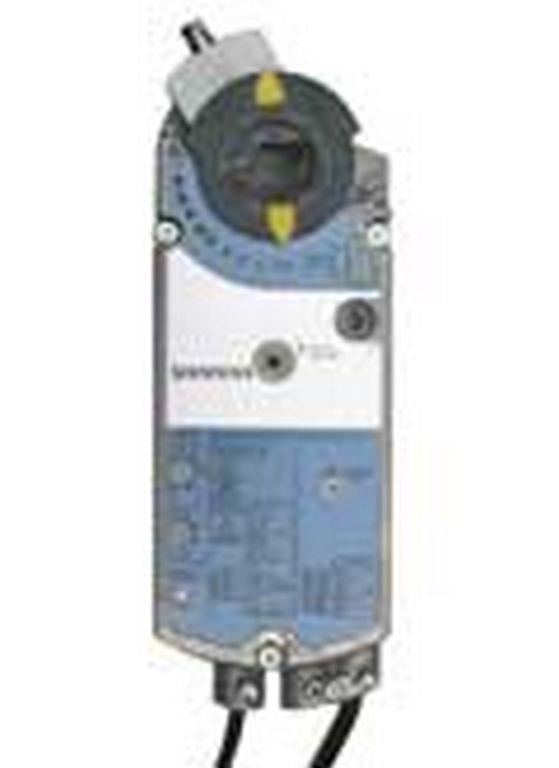

GCA221.1U | Damper Actuator | Spring Return | 120 VAC | On/Off | 160 lb-in | Siemens

OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 120 Vac, 2-position control, 90 sec run time

Siemens | GCA221.1U
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GCA221.1U
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens GCA221.1U Documents

Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Submittal Sheet)Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Technical Instructions)Datasheet(OpenAir Damper Actuator Spring Return Electronic Damper Actuators Competitive Wiring Guide)Declaration of conformity(LVD GAP GCA Declaration of Conformity)Installation instruction(OpenAir GCA Series NSR Rotary Damper Actuators Installation Instructions)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..)Dimension Drawings(Rotary air damper actuator without spring return GBB..) Installation Instructions More Info

Overview

Details for GCA221.1U

Damper Actuator | Spring Return | 120 VAC | On/Off | 160 lb-in

OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 120 Vac, 2-position control, 90 sec run time

Specifications

Control or Fire/Smoke Type
Control Damper
Torque
160 lb-in
Positioning time
Open:90 s, Close:15 s
Position feedback
No
Power consumption
Running: 8 VA, Holding: 6 VA
Ambient humidity, operation
95 % r.h.
Angular rotation
90°
Operating voltage
120 VAC
Frequency
50/60 Hz
Cable length
3 ft
Dimensions (W x H x D)
4.75 x 11.81 x 2.88 in
Material, housing
NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Degree of protection
IP54
