GCA131.1P | Damper Actuator | Spring Return | 24 VAC/DC | Floating | 160 lb-in | Siemens
OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 24 Vac/dc, floating control, 90 sec run time, plenum rated

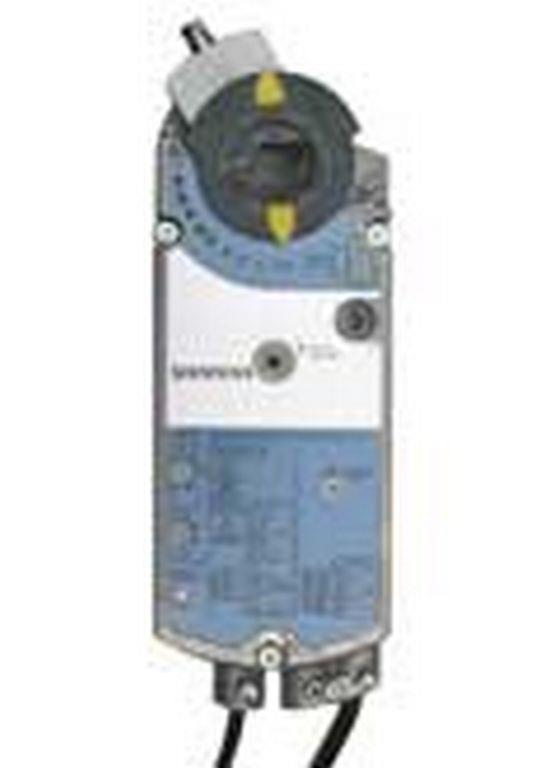

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GCA131.1P
Documents and manuals
Siemens GCA131.1P Documents
Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Submittal Sheet)Datasheet(OpenAir GCA Series Spring Return 160 lb-in Electronic Damper Actuators Technical Instructions)Declaration of conformity(GAP GCA Declaration of Conformity)Installation instruction(OpenAir GCA Series NSR Rotary Damper Actuators Installation Instructions)Other datasheet(Accessories and spare parts for air damper actuators ASC... ASK..)Dimension Drawings(Rotary air damper actuator without spring return GBB..) Installation Instructions More Info
Overview
Details for GCA131.1P
Damper Actuator | Spring Return | 24 VAC/DC | Floating | 160 lb-in
OpenAir™ GCA Series Electric Damper Actuator, rotary, spring return, 160 lb-in (18 Nm), 24 Vac/dc, floating control, 90 sec run time, plenum ratedSpecifications
- Control or Fire/Smoke Type
- Control Damper
- Torque
- 160 lb-in
- Positioning time
- Open:90 s, Close:15 s
- Position feedback
- No
- Power consumption
- Running: 7 VA / 5 W, Holding: 5 VA / 3 W
- Ambient humidity, operation
- 95 % r.h.
- Angular rotation
- 90°
- Operating voltage
- 7…28.8 V24 V#AC/DC
- Frequency
- 50/60 Hz
- Cable length
- 3 ft
- Dimensions (W x H x D)
- 4.75 x 11.81 x 2.88 in
- Material, housing
- NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
- Degree of protection
- IP54
