599-10313 | 2W 1", 16Cv ball valve, chrome-plated brass ball & brass stem, 200psi close-off | Siemens
This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-inch valve is 16 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

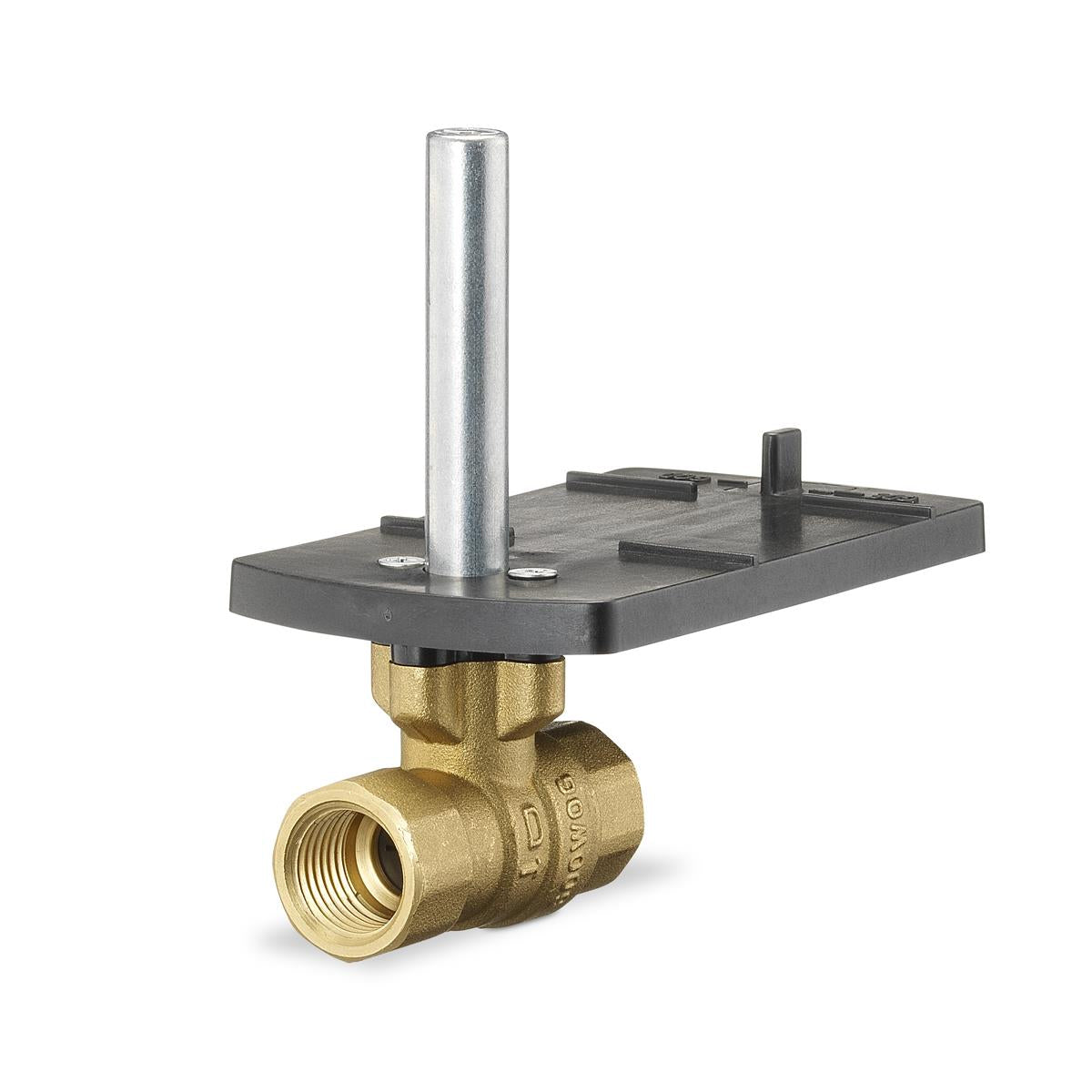

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-10313
Documents and manuals
Overview
Details for 599-10313
2W 1", 16Cv ball valve, chrome-plated brass ball & brass stem, 200psi close-off
Specifications
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Material, valve body
- Brass
- Medium
- Water , Water with anti-freeze
- DN
- 25
- Leakage rate, class
- ANSI Class IV
- Medium temperature
- 35…250 ºF
- Dimensions (W x H x D)
- 6 x 8.31 x 5.38 in
