599-06177 | Flowrite 4" Flanged, 3W Valve, 160Cv, Stainless Steel Trim, ANSI 250 | Siemens
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, stainless steel trim, flanged connections, 4" line size, 160 Cv flow rate and is ANSI Class 250.

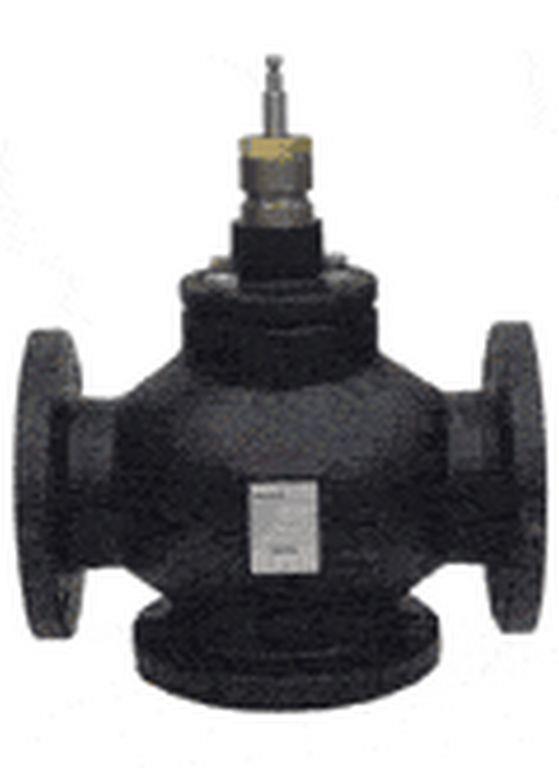

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-06177
Documents and manuals
Overview
Details for 599-06177
Flowrite 4" Flanged, 3W Valve, 160Cv, Stainless Steel Trim, ANSI 250
The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, stainless steel trim, flanged connections, 4" line size, 160 Cv flow rate and is ANSI Class 250.Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Mixing
- End Connection
- Flanged
- Connecting thread
- Valve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet
- Material, valve body
- Cast iron ASTM A126 Class B
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
- Medium
- Water , Water with anti-freeze
- DN
- 100
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- Medium temperature
- 20…250 ºF
- Stroke
- 1-1/2 in., 40 mm
- Dimensions (W x H x D)
- 14.49 x 15.91 x 10 in
