599-04315-20 | PICV, 1-1/2 inch, Normally Open, 20 GPM max. flow preset | Siemens

Pressure Independent Control Valve, 1-1/2 inch, Normally Open, preset to 20 GPM maximum flow (field adjustable)

Brand: SiemensSKU: 599-04315-20
Siemens | 599-04315-20

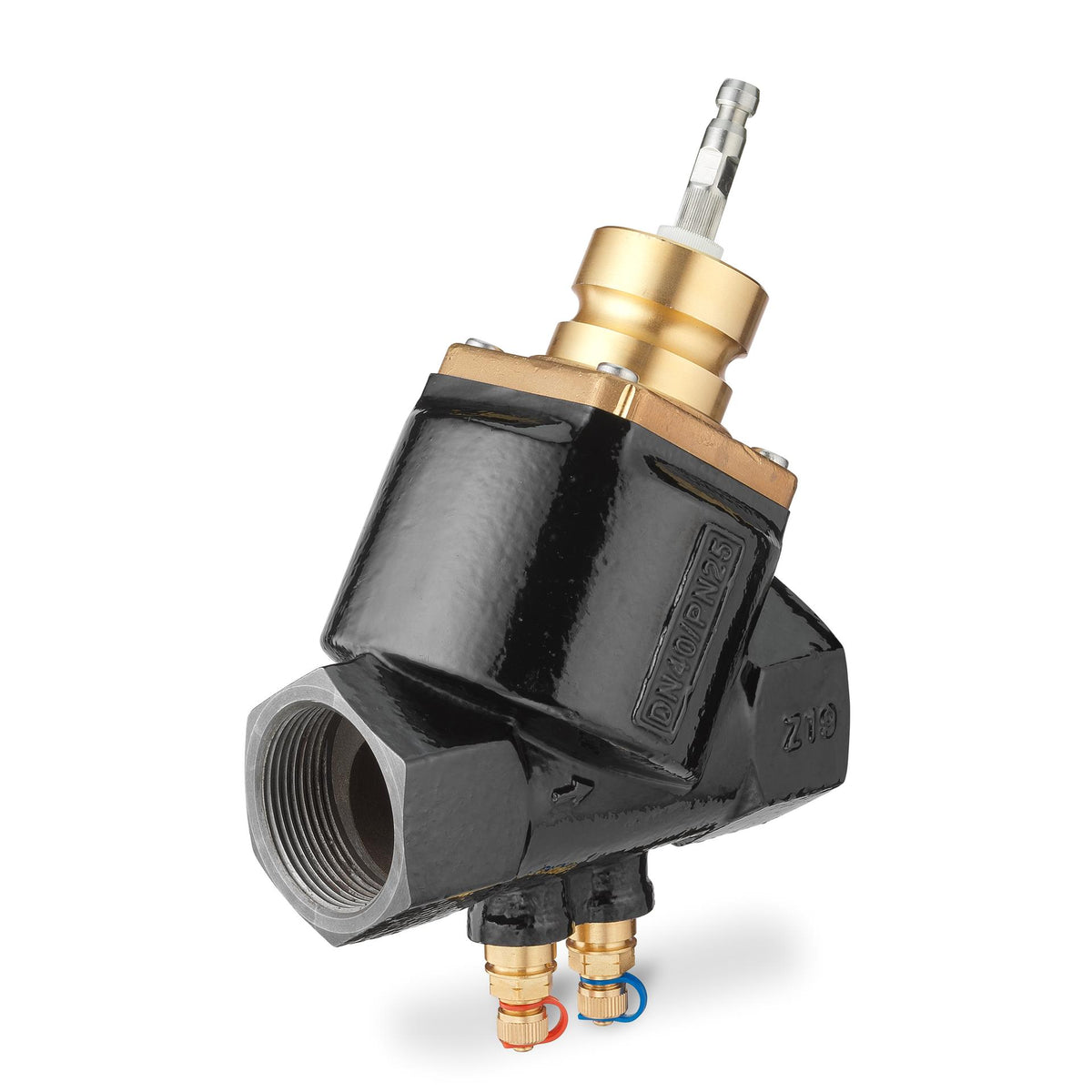

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04315-20

Overview Details for 599-04315-20

PICV, 1-1/2 inch, Normally Open, 20 GPM max. flow preset

Pressure Independent Control Valve, 1-1/2 inch, Normally Open, preset to 20 GPM maximum flow (field adjustable)

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
NPT
Connecting thread
Internal NPT thread
Material, valve body
Ductile Iron
Material, inside set
Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium
Water , Water with anti-freeze
Max GPM
40 gpm
DN
40
Min GPM
10 gpm
Preset GPM
20 gpm
Leakage rate
ANSI Class IV (0.01%)
Rangeability
≥ 100:1
Medium temperature
34…248 ºF
Stroke
15 mm
Dimensions (W x H x D)
3.7 x 8.54 x 5.47 in
