599-03205 | Flowrite 3-Way Valve 1 1/2"(40mm) line size, 25 Cv, Brass Trim, FxF, ANSI 250 | Siemens

The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, F×F connections, 1-1/2" line size, 25 Cv flow rate and is ANSI Class 250.

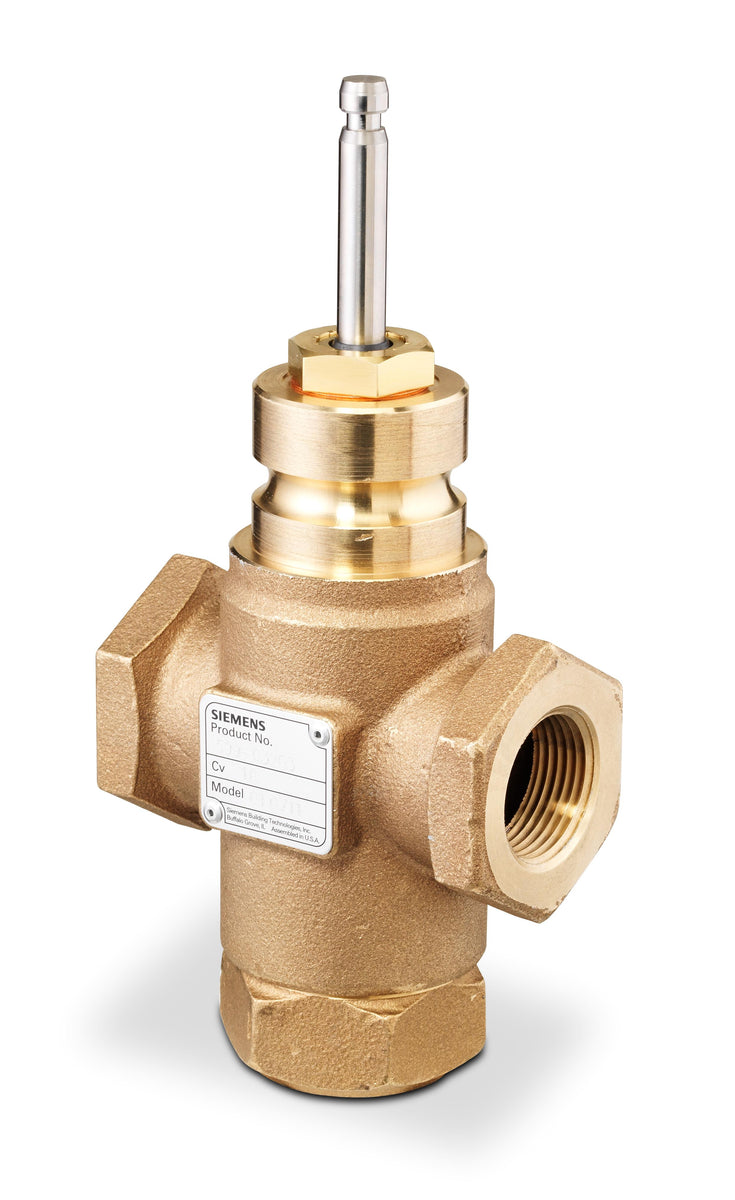

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 599-03205

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 599-03205 Documents

Datasheet(3-Way 1/2-2-Inch Valve ANSI Class Bronze Body Submittal Sheet)Datasheet(Flowrite 599 Series 3-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin) More Info

Overview

Details for 599-03205

Flowrite 3-Way Valve 1 1/2"(40mm) line size, 25 Cv, Brass Trim, FxF, ANSI 250

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 3-Way Mixing
End Connection: FxF
Connecting thread: NPT, direct-coupled universal bonnet
Material, valve body: UNS CA 844 bronze
Material, inside set: Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium: Water , Water with anti-freeze
DN: 40
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
Medium temperature: 20…250 ºF
Stroke: 3/4 in., 20 mm
Dimensions (W x H x D): 5.12 x 6.3 x 2.28 in
