599-00533 | 599 Series Zone Valve, 1", 3W, 7.0Cv, linear, ANSI 125, 1/10" stroke, SWT | Siemens
599 Series Zone Valve, 1-inch, three-way, globe body style, 7.0 Cv, diverting or mixing (limited application), controlled medium is water or glycol solutions to 50%, linear characteristic, ANSI Class 125, 1/10-inch (2.5 mm) stroke, 22 psi (152 kPa) close-off pressure, SWT end connections, and direct-coupled universal bonnet for actuator connection.

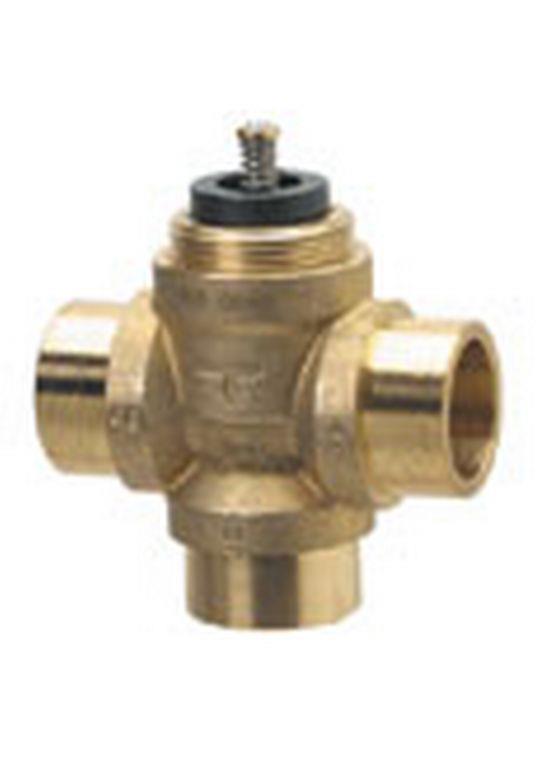

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-00533
Documents and manuals
Overview
Details for 599-00533
599 Series Zone Valve, 1", 3W, 7.0Cv, linear, ANSI 125, 1/10" stroke, SWT
Specifications
- Valve Size
- 0.5 in
- Flow Coefficient, Cv
- 7
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 3-Way Diverting
- End Connection
- SWT
- Connecting thread
- SWT
- Material, valve body
- Brass
- Trim Material
- Brass
- Material, inside set
- Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Seat: Metal-to-Metal , Packing: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- DN
- 25
- Pressure Class
- ANSI 125
- Leakage rate
- ANSI Class III
- Leakage rate, class
- ANSI Class III
- Medium temperature
- 34…230 ºF
- Stroke
- 2.5 mm
- Stroke, mm
- 2.5 mm
- Dimensions (W x H x D)
- 3.5 x 3.43 x 1.81 in
