544-562-40 | Liquid Immersion Temperature Sensor, 100 Ohm Platinum RTD, 4-Inch | Siemens
Liquid immersion temperature sensor with 100 ohm platinum RTD and 4 to 20 mA output. Temperature range is from 32 to 212 degrees Fahrenheit (0 to 100 degrees Celsius). Element is 4 inches (10.2 cm) long.

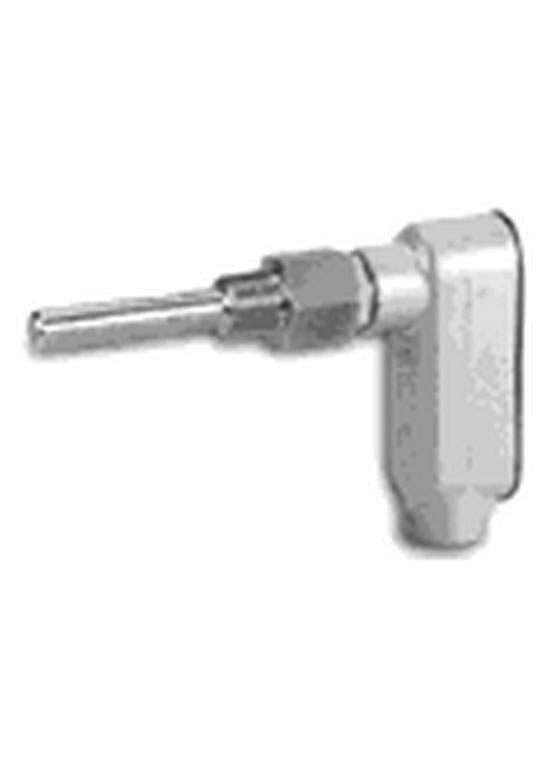

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 544-562-40
Documents and manuals
Siemens 544-562-40 Documents
Datasheet(Immersion Well Temperature Sensors Technical Specification Sheet)Declaration of conformity(Temp Sensor (IMMERSION TMP SNSR) Declaration of Conformity)Installation instruction(Immersion Temperature Sensors with 4 to 20 mA Transmitter Installation Instructions) Installation Instructions More Info
Overview
Details for 544-562-40
Liquid Immersion Temperature Sensor, 100 Ohm Platinum RTD, 4-Inch
Liquid immersion temperature sensor with 100 ohm platinum RTD and 4 to 20 mA output. Temperature range is from 32 to 212 degrees Fahrenheit (0 to 100 degrees Celsius). Element is 4 inches (10.2 cm) long.Specifications
- Sensing element
- 100 ohm Platinum RTD
- Operating voltage
- 18 to 36Vdc or 24Vac ± 20 %
- Analog outputs
- 4 to 20 mA
- Measuring range
- 32 to 122 °F
- Measurement accuracy
- +/-0.54°F @ 32 °F
- Sensor
- 4 in. insertion depth with 300 series stainless steel well
- Material, housing
- Not for use with potable water
- Sensing element
- Pt100
