Documents: 536-780

Datasheet More Info

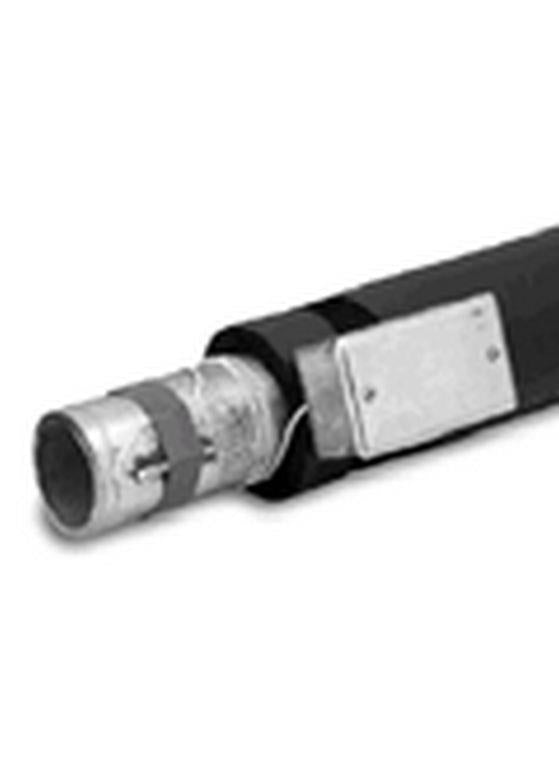

536-780 | Surface Mount Temperature Sensor (Pipe), 4-20 mA, 2 x 4 Metal Box with Clamps | Siemens

This surface mount pipe sensor provides input for accurate loop-powered temperature sensing for controllers. It has a temperature range of 30 to 250 degrees Fahrenheit and a mid-range accuracy of +/- 1.1 degrees Fahrenheit. This pipe sensor has a 2" x 4" metal box with clamps for surface mounting and providees a 4 to 20 mA control signal.

Brand: SiemensSKU: 536-780

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 536-780

Jump to: Overview & Specifications Reviews

Overview Details for 536-780

Surface Mount Temperature Sensor (Pipe), 4-20 mA, 2 x 4 Metal Box with Clamps

Specifications

Operating voltage: 18 to 36Vdc or 24Vac ± 20 %
Analog outputs: 4 to 20 mA
Measuring range: 30 to 250 °F
Sensor: Sensing element with leads, transmitter and 2 x 4 in. box
Material, housing: Stainless steel housing, 2-inch × 4-inch metal box with clamps
Sensing element: Pt100
