337NC-04316-50 | 2 PICV 50 GPM+MOD SR NC | Siemens

2 PICV 50 GPM+MOD SR NC

Siemens | 337NC-04316-50

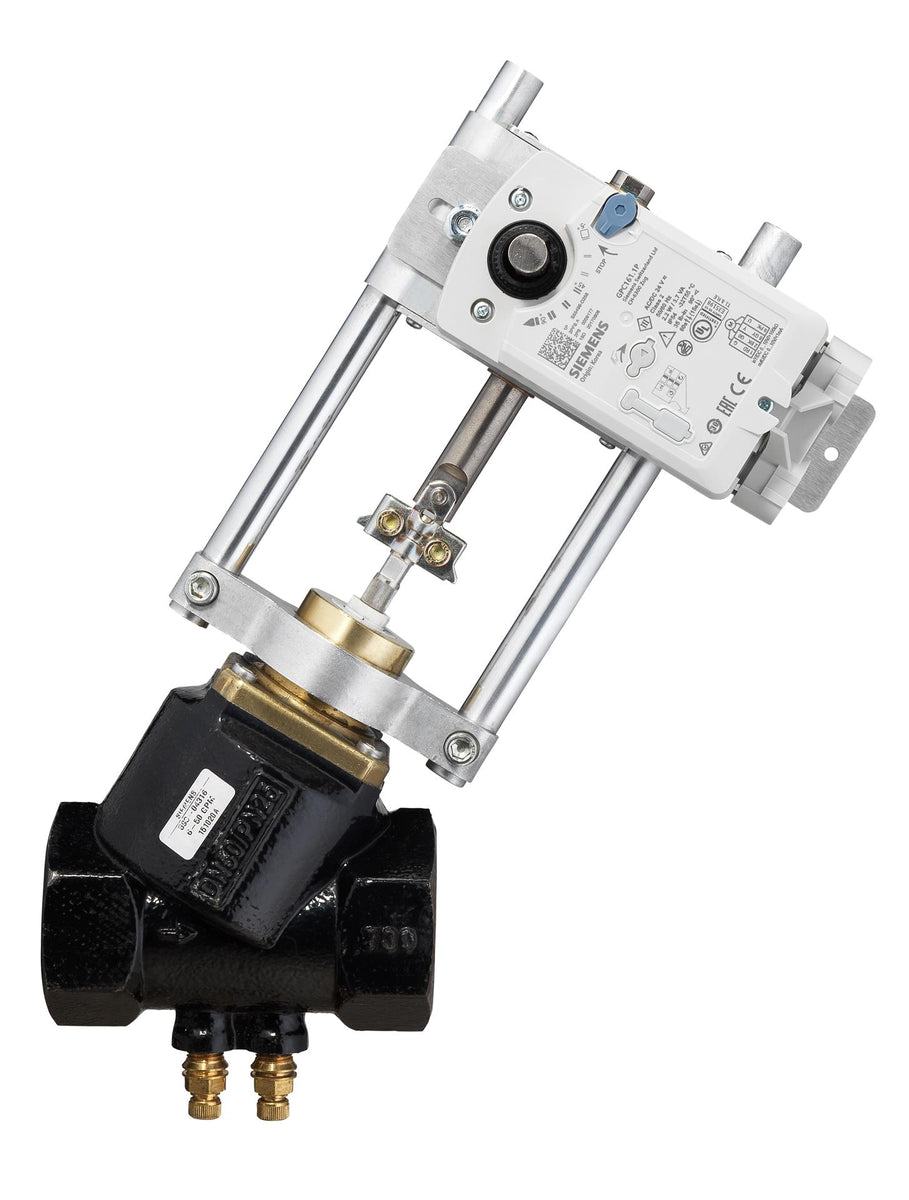

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 337NC-04316-50
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens 337NC-04316-50 Documents

Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions)Datasheet(Pressure Independent Control Series Rack and Pinion Actuators Technical Instructions)Installation instruction(Pressure Independent Control Series Rack and Pinion Actuators Installation Instructions)Datasheet for Actuator(OpenAir GPC Series Spring Return. 35 lb-in (4 Nm). Rotary Electronic Damper Actuators Technical Instructions) Installation Instructions More Info

Overview

Details for 337NC-04316-50

2 PICV 50 GPM+MOD SR NC

Specifications

Valve Size
2 in
Valve Type
Two-way
Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally closed
End Connection
NPT
Connecting thread
Internal NPT thread
Material, valve body
Ductile iron
Trim Material
Brass
Material, inside set
Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
Flow Characteristic
Linear
Medium
Water , Water with anti-freeze
Max GPM
50 gpm
Min GPM
10 gpm
Preset GPM
50 gpm
Pressure Class
ANSI 250
Leakage rate
ANSI Class IV (0.01%) @ 100 psi
Rangeability
≥ 100:1
Max. Inlet Pressure (absolute), Liquid
400 psi
Max. Differential Pressure, Liquid
58 psi
Medium temperature
34…248 ºF
Stroke
15 mm
Close-off Pressure
100 psi
Valve Actuator Type
Electronic
Actuation Style
Linear
Normally Open/Normally Closed
Normally Closed
Control Signal
0...10 Vdc
Fail Safe
Yes
Supply Voltage
24 VAC/DC
Positioning time
60 sec
Power consumption
3.5 VA
Dimensions (W x H x D)
9 x 9 x 16 in
