599-04316-50 | PICV, 2 inch, Normally Open, 50 GPM max. flow preset | Siemens

Pressure Independent Control Valve, 2 inch, Normally Open, preset to 50 GPM maximum flow (field adjustable)

Brand: SiemensSKU: 599-04316-50

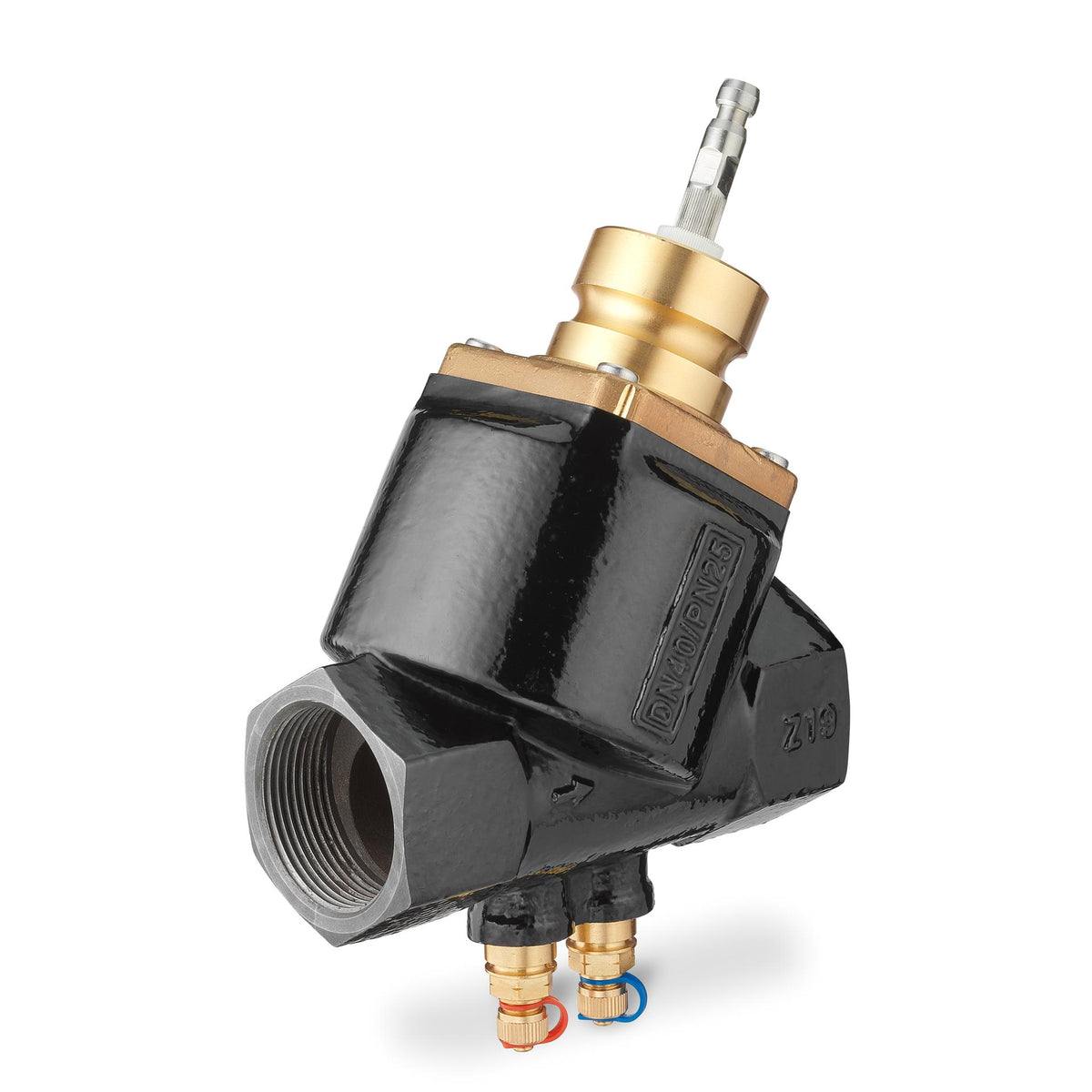

The photo is for representation purposes only and may not be a photo of product being purchased.

Overview Details for 599-04316-50

PICV, 2 inch, Normally Open, 50 GPM max. flow preset

Pressure Independent Control Valve, 2 inch, Normally Open, preset to 50 GPM maximum flow (field adjustable)

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally open
End Connection: NPT
Connecting thread: Internal NPT thread
Material, valve body: Ductile Iron
Material, inside set: Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
Medium: Water , Water with anti-freeze
Max GPM: 50 gpm
DN: 50
Min GPM: 10 gpm
Preset GPM: 50 gpm
Leakage rate: ANSI Class IV (0.01%) @ 100 psi
Rangeability: ≥ 100:1
Medium temperature: 34…248 ºF
Stroke: 15 mm
Dimensions (W x H x D): 3.7 x 8.78 x 5.47 in
