337NC-04315-15 | 1.5 PICV 15GPM+MOD SR NC | Siemens

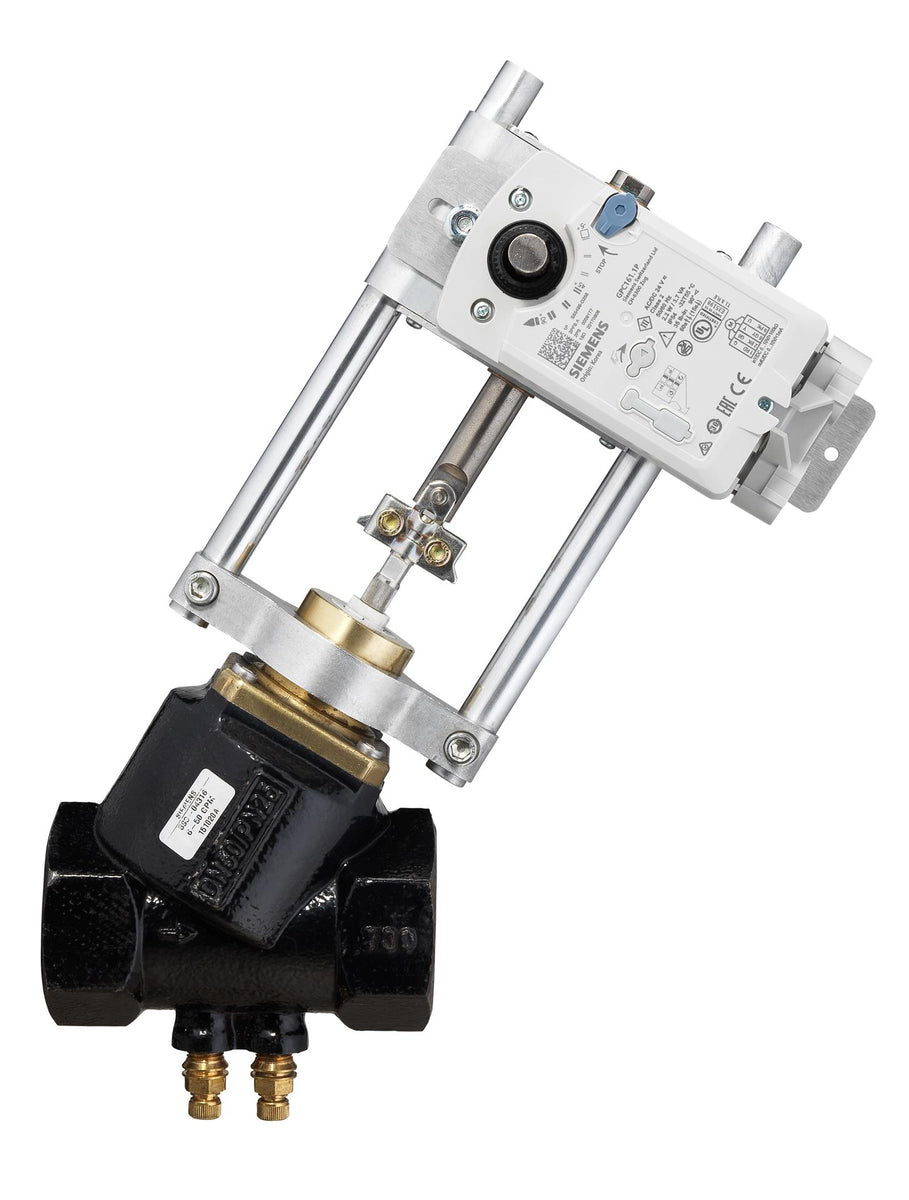

1.5 PICV 15GPM+MOD SR NC
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 337NC-04315-15
Documents and manuals
Siemens 337NC-04315-15 Documents
Datasheet(Pressure Independent Control 2-Way Valves and Electronic Actuators Submittal Sheet)Datasheet(Pressure Independent Control Series 2-Way. Brass Valve Bodies. 1/2" to 2". ANSI 250 Technical Instructions)Datasheet(Pressure Independent Control Series Rack and Pinion Actuators Technical Instructions)Installation instruction(Pressure Independent Control Series Rack and Pinion Actuators Installation Instructions)Datasheet for Actuator(OpenAir GPC Series Spring Return. 35 lb-in (4 Nm). Rotary Electronic Damper Actuators Technical Instructions) Installation Instructions More Info
Overview
Details for 337NC-04315-15
1.5 PICV 15GPM+MOD SR NC
Specifications
- Valve Size
- 1.5 in
- Valve Type
- Two-way
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Ductile iron
- Trim Material
- Brass
- Material, inside set
- Plug: Brass , Stem: Stainless Steel , Seals: EPDM O-ring
- Flow Characteristic
- Linear
- Medium
- Water , Water with anti-freeze
- Max GPM
- 40 gpm
- Min GPM
- 10 gpm
- Preset GPM
- 15 gpm
- Pressure Class
- ANSI 250
- Leakage rate
- ANSI Class IV (0.01%) @ 100 psi
- Rangeability
- ≥ 100:1
- Max. Inlet Pressure (absolute), Liquid
- 400 psi
- Max. Differential Pressure, Liquid
- 58 psi
- Medium temperature
- 34…248 ºF
- Stroke
- 15 mm
- Close-off Pressure
- 100 psi
- Valve Actuator Type
- Electronic
- Actuation Style
- Linear
- Normally Open/Normally Closed
- Normally Closed
- Control Signal
- 0...10 Vdc
- Fail Safe
- Yes
- Supply Voltage
- 24 VAC/DC
- Positioning time
- 60 sec
- Power consumption
- 3.5 VA
- Dimensions (W x H x D)
- 9 x 9 x 16 in
