599-04315-15 | PICV, 1-1/2 inch, Normally Open, 15 GPM max. flow preset | Siemens
Pressure Independent Control Valve, 1-1/2 inch, Normally Open, preset to 15 GPM maximum flow (field adjustable)

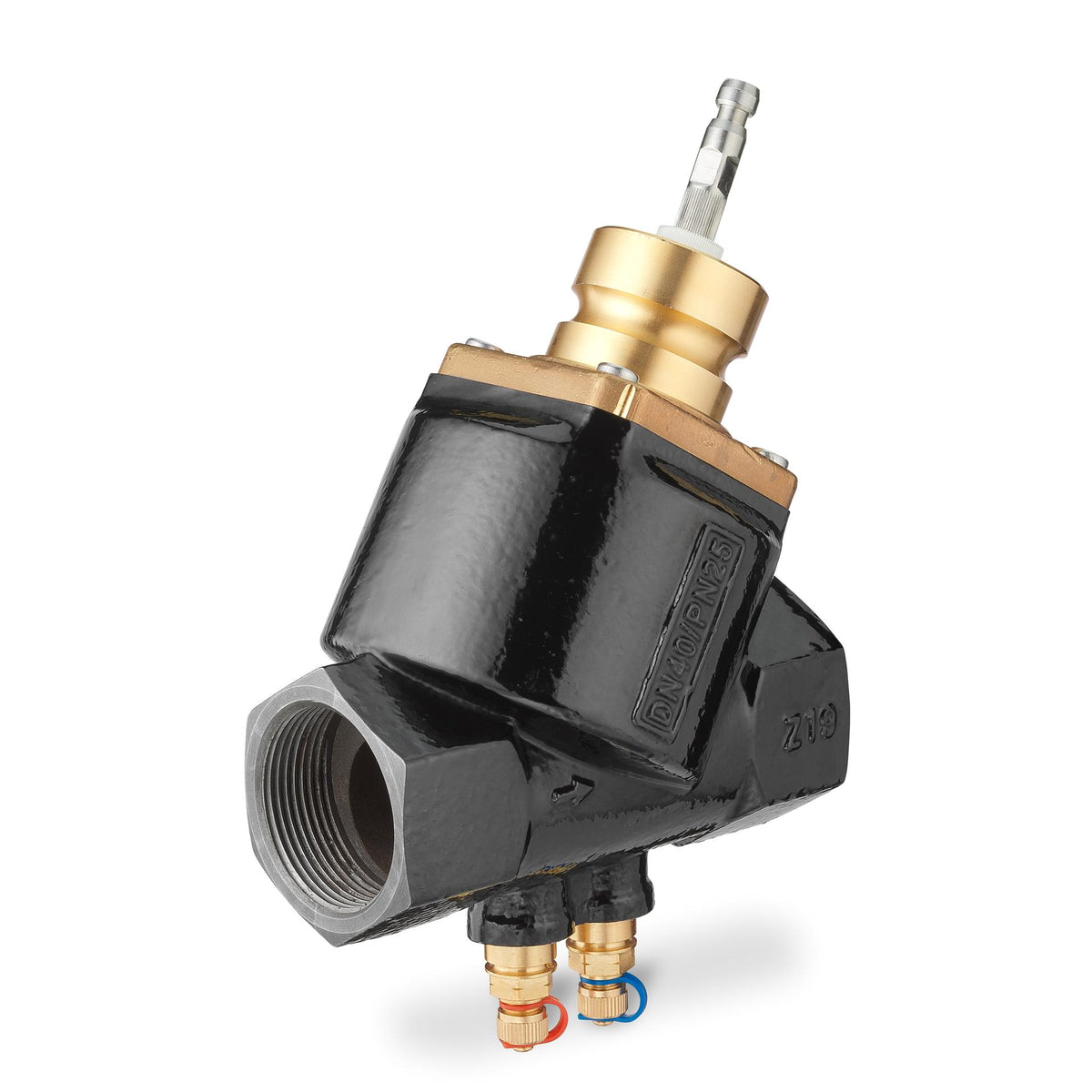

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-04315-15
Documents and manuals
Overview
Details for 599-04315-15
PICV, 1-1/2 inch, Normally Open, 15 GPM max. flow preset
Pressure Independent Control Valve, 1-1/2 inch, Normally Open, preset to 15 GPM maximum flow (field adjustable)Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally open
- End Connection
- NPT
- Connecting thread
- Internal NPT thread
- Material, valve body
- Ductile Iron
- Material, inside set
- Plug: Brass , Stem, spring: Stainless Steel , Seals: EPDM 281 O-ring
- Medium
- Water , Water with anti-freeze
- Max GPM
- 40 gpm
- DN
- 40
- Min GPM
- 10 gpm
- Preset GPM
- 15 gpm
- Leakage rate
- ANSI Class IV (0.01%)
- Rangeability
- ≥ 100:1
- Medium temperature
- 34…248 ºF
- Stroke
- 15 mm
- Dimensions (W x H x D)
- 3.7 x 8.54 x 5.47 in
