287-05952 | Valve assy 2W NC 4", 160Cv, Eq Pct Bronze Trim Flanged 12" Pneu Act w/ pos | Siemens

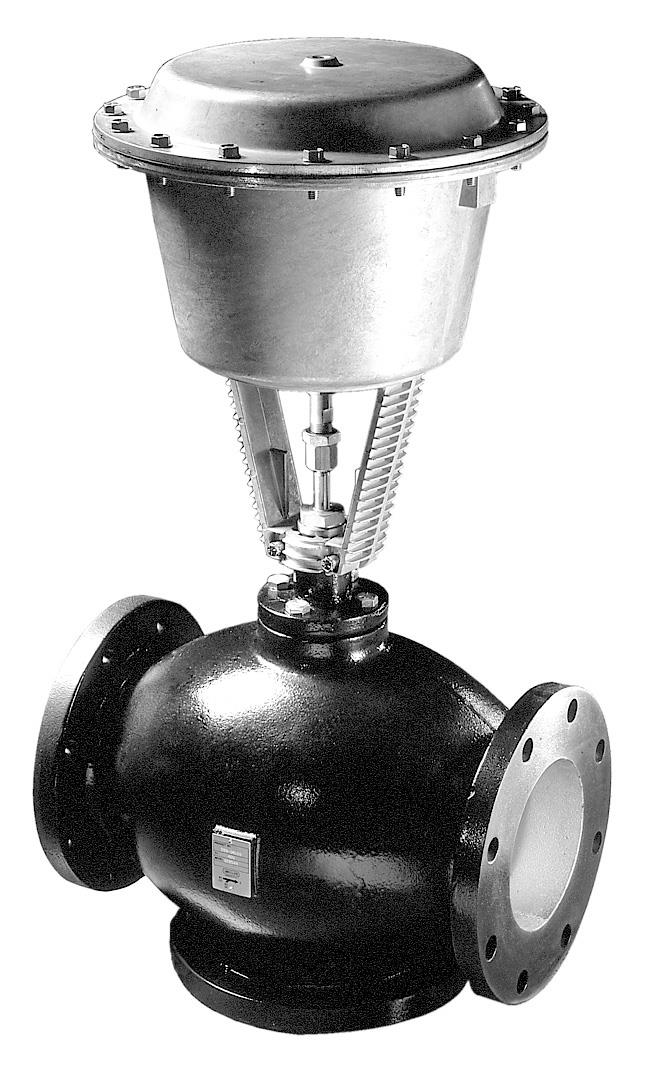

Flowrite 599 Series Valve Assembly features a 12-inch pneumatic actuator with factory-mounted positioner, 1-1/2-inch stroke, and 5 psi span. The 2-way, normally closed, 4-inch, 160 Cv valve assembly with 1-1/2-inch stroke is ANSI Class 250 and has an equal percentage characteristic, brass trim, and flanged end connections.

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 287-05952

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 287-05952 Documents

Datasheet(Flowrite VF 599 Series Two-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite AP 599 Series 12-inch PneumaticValve Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Valve(Flowrite VF 599 series Valves. 2-1/2 to 6-Inch. Flanged. ANSI Class 250. Iron Body Submittal Sheet)Datasheet for Actuator(Flowrite AP 599 Series 12-inch PneumaticValve Technical Instructions) More Info

Overview

Details for 287-05952

Valve assy 2W NC 4", 160Cv, Eq Pct Bronze Trim Flanged 12" Pneu Act w/ pos

Specifications

Valve Body Style: Stroke-Globe
Port Configuration: 2-Way Normally closed
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Bronze , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium: Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: NO
Medium temperature: 20…250 ºF
Stroke: 1-1/2 in., 40 mm
Valve Actuator Type: Pneumatic
