284-03072 | Valve assy 2W NC 1/2", 1Cv, Lin, SS Trim Hi Temp Pkg FxF, 8" Pneu Act w/ pos | Siemens

Flowrite 599 Series Valve Assembly features a high-temperature 8-inch pneumatic actuator with factory-mounted positioner and 10 psi span. The 2-way, normally closed, 1/2-inch, 1 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

Siemens | 284-03072

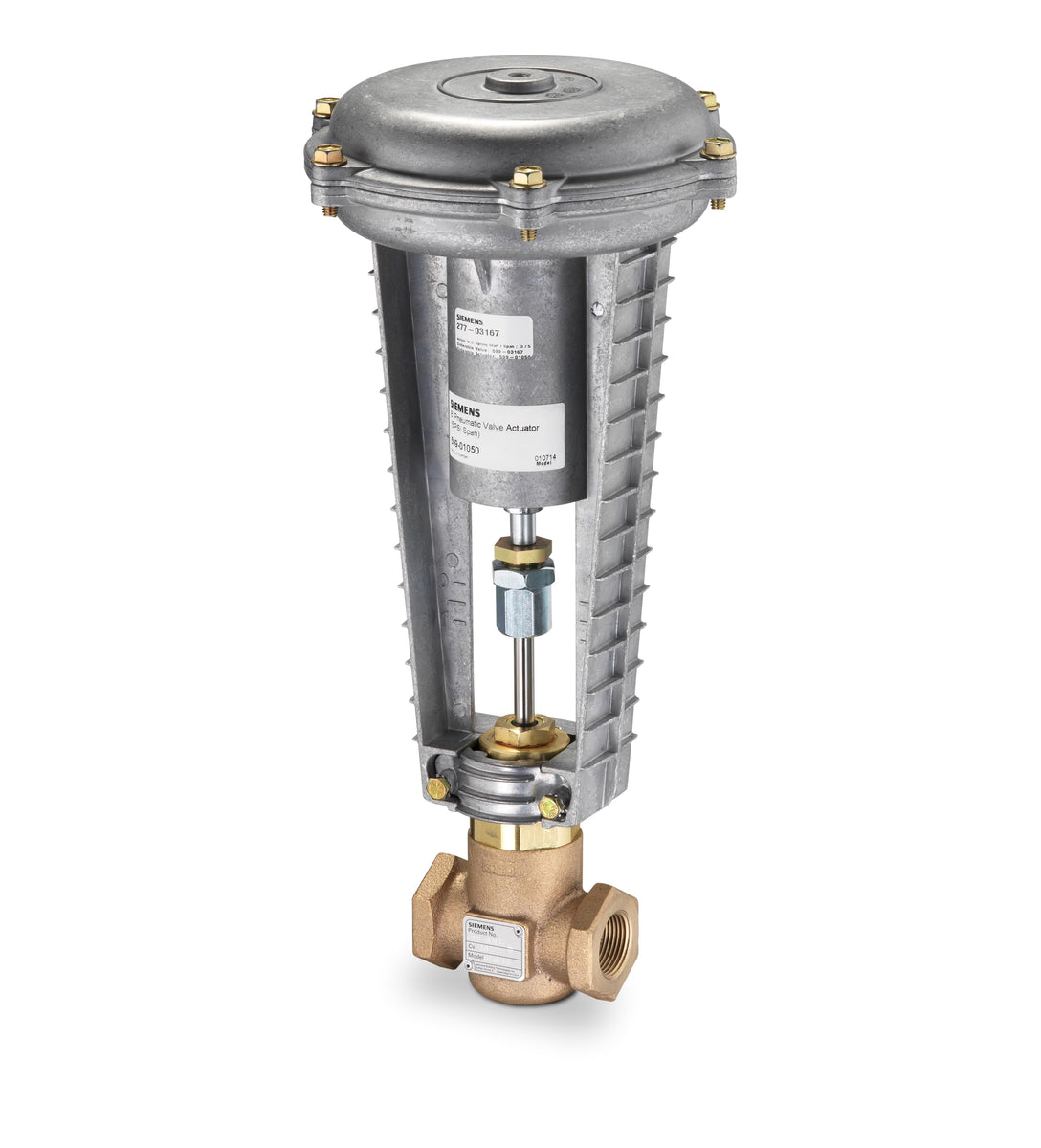

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 284-03072

Overview

Details for 284-03072

Valve assy 2W NC 1/2", 1Cv, Lin, SS Trim Hi Temp Pkg FxF, 8" Pneu Act w/ pos

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally closed
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
YES
Medium temperature
20…337 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
