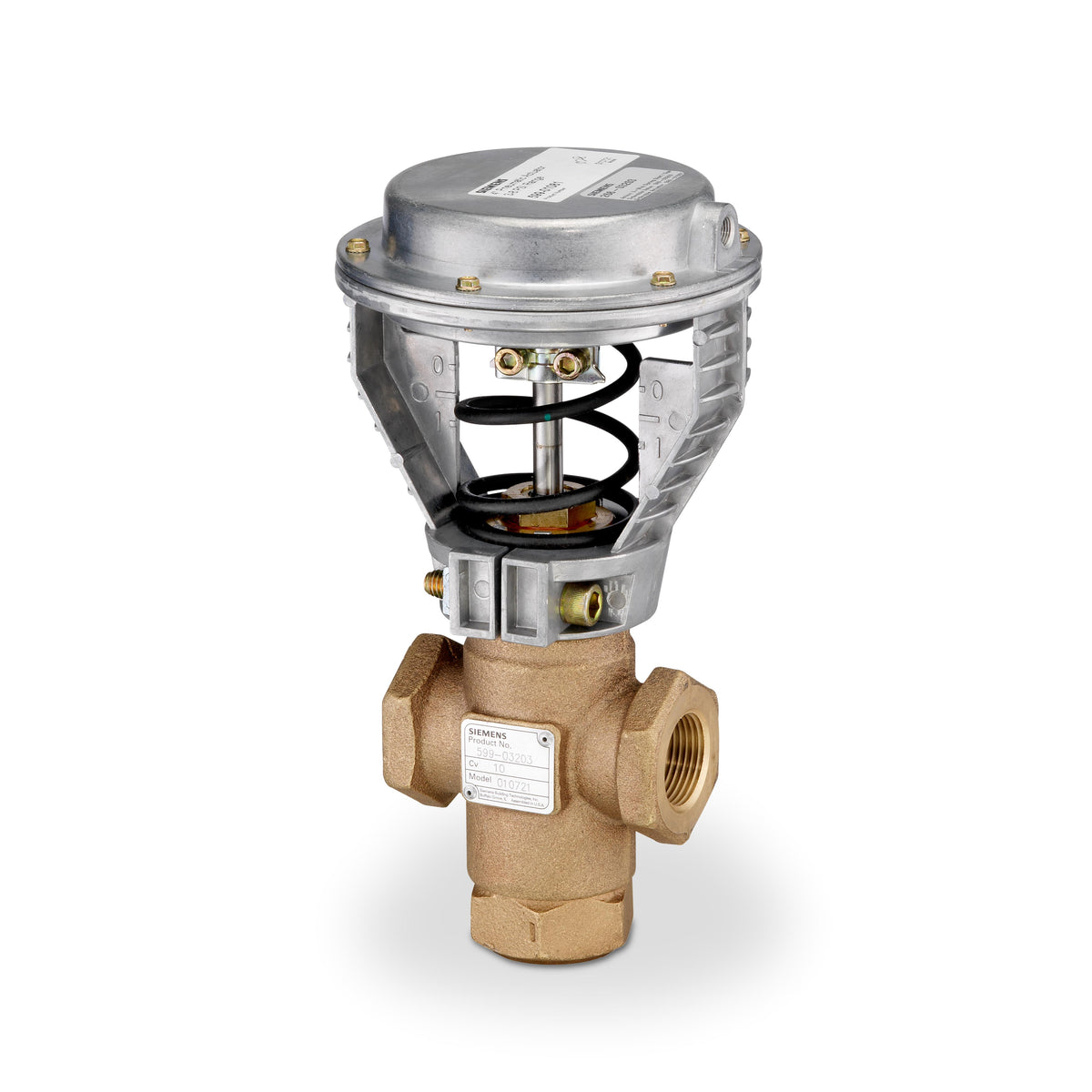

The photo is for representation purposes only and may not be a photo of product being purchased.

268-03202 | Valve assy 3W Mix 3/4" 6.3Cv Eq Pct/Lin Brass Trim FxF, 4" Pneu Act 3-8psi | Siemens

SKU: 268-03202Brand: SiemensCondition: New

Details for 268-03202

Valve assy 3W Mix 3/4" 6.3Cv Eq Pct/Lin Brass Trim FxF, 4" Pneu Act 3-8psi

Flowrite 599

Valve assy 3W Mix 3/4" 6.3Cv Eq Pct/Lin Brass Trim FxF, 4" Pneu Act 3-8psi

Flowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 3-8 psi. The 3-way, mixing, 3/4-inch, 6.3 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and female x female end connections.
Read More
Brand: SiemensSKU: 268-03202
List Price
$651.48
$247.56
Availability: This product is currently available to purchase
Orders over $999 ship FREE
Shipping and Returns Terms

Siemens 268-03202 Documents

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 7pm CDT M-F

Details for 268-03202

Valve assy 3W Mix 3/4" 6.3Cv Eq Pct/Lin Brass Trim FxF, 4" Pneu Act 3-8psi

Flowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 3-8 psi. The 3-way, mixing, 3/4-inch, 6.3 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and female x female end connections.

Description


This Technical Bulletin will aid in the selection of a Flowrite 599 Series valve and actuator assembly. Begin with the graph of water capacity and the chart of close-off pressures to select a valve and actuator according to specifications.

These tables show all the possible combinations of the Flowrite 599 Series valves and compatible actuators that can be ordered as complete valve assemblies from the factory.
