277-03170 | Valve Assembly: 2W, NO, 2", 40 Cv, Eq Percent, Brass Trim, FxF, 8" Pneu Act | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 2-way, normally open, 2-inch, 40 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, brass trim, and female x female end connections.

Siemens | 277-03170

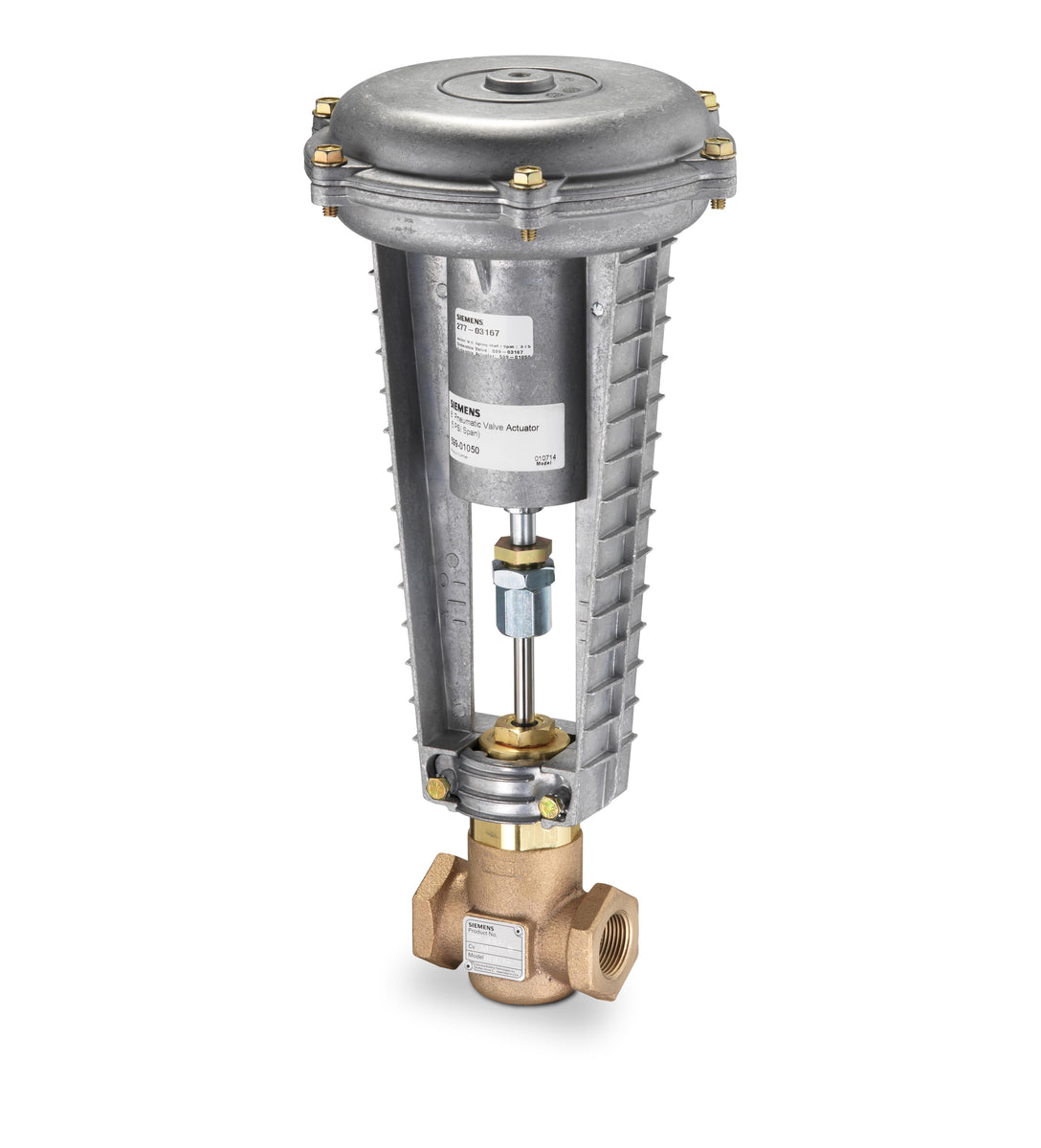

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 277-03170

Overview

Details for 277-03170

Valve Assembly: 2W, NO, 2", 40 Cv, Eq Percent, Brass Trim, FxF, 8" Pneu Act

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 2-way, normally open, 2-inch, 40 Cv valve assembly is ANSI Class 250 and has an equal percentage characteristic, brass trim, and female x female end connections.

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
