283-03198    | Valve assy 3W Mix 1/2" 1Cv Eq Pct/Lin Brass Trim FxF, 8
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SiemensSKU: 283-03198

Web Price:

$556.06
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

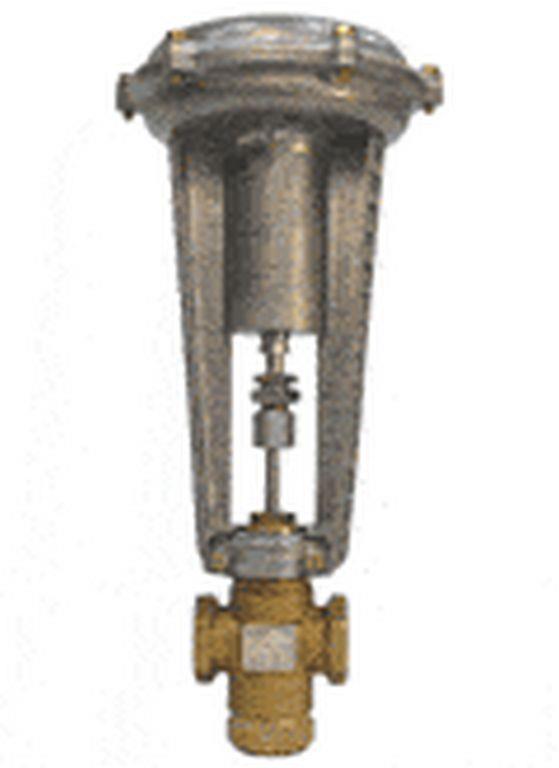

283-03198 | Valve assy 3W Mix 1/2" 1Cv Eq Pct/Lin Brass Trim FxF, 8" Pneu Act w/ pos | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with factory-mounted positioner and 5 psi span. The 3-way, mixing, 1/2-inch, 1 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and female x female end connections.

Siemens | 283-03198
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 283-03198

Overview

Details for 283-03198

Valve assy 3W Mix 1/2" 1Cv Eq Pct/Lin Brass Trim FxF, 8" Pneu Act w/ pos

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
3-Way Mixing
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
