283-03000 | Valve assy 2W NO, 1/2" 1Cv Lin SS Trim FxF, 8" Pneu Actuator w/ pos | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with factory-mounted positioner and 5 psi span. The 2-way, normally open, 1/2-inch, 1 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, and female x female end connections.

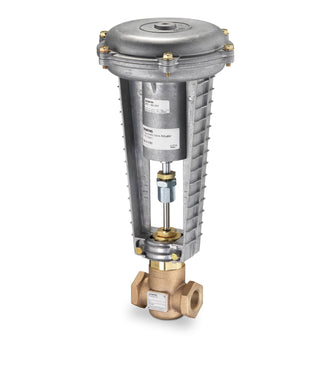

Siemens | 283-03000
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 283-03000

Overview

Details for 283-03000

Valve assy 2W NO, 1/2" 1Cv Lin SS Trim FxF, 8" Pneu Actuator w/ pos

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally open
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
