278-06040 | Valve assy Hi Temp 2W NO 2-1/2
278-06040 | Valve assy Hi Temp 2W NO 2-1/2" 63Cv Lin SS Trim Flng 8" Pneu Act | Siemens
Siemens | 278-06040
The photo is for representation purposes only and may not be a photo of product being purchased.

278-06040 | Valve assy Hi Temp 2W NO 2-1/2" 63Cv Lin SS Trim Flng 8" Pneu Act | Siemens

SKU: 278-06040Brand: SiemensCondition: New

Details for 278-06040

Valve assy Hi Temp 2W NO 2-1/2" 63Cv Lin SS Trim Flng 8" Pneu Act

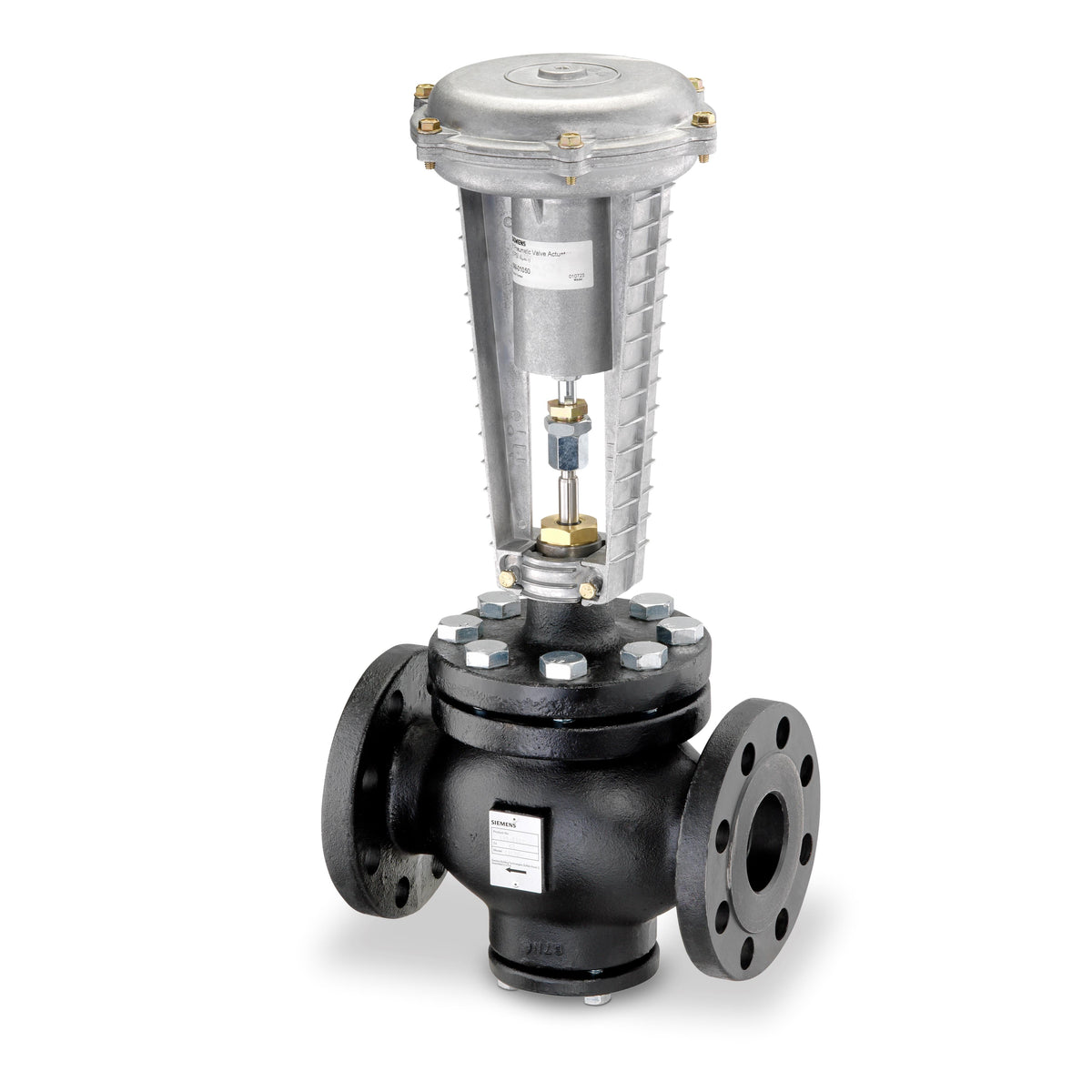

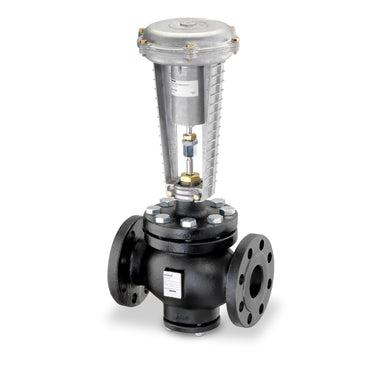

Flowrite 599 Series Valve Assembly

Valve assy Hi Temp 2W NO 2-1/2" 63Cv Lin SS Trim Flng 8" Pneu Act

Flowrite 599 Series Valve Assembly features a high-temperature 8-inch pneumatic actuator with 10 psi span. The 2-way, normally open, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has a linear characteristic, stainless steel trim, high temp packing, and flanged end connections.
Read More
Brand: SiemensSKU: 278-06040
List Price
$3,045.13
$1,157.15
Availability: This product is currently available to purchase
This item ships via FREIGHT
Shipping and Returns Terms

Siemens 278-06040 Documents

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 7pm CDT M-F

Details for 278-06040

Valve assy Hi Temp 2W NO 2-1/2" 63Cv Lin SS Trim Flng 8" Pneu Act

Flowrite 599 Series Valve Assembly features a high-temperature 8-inch pneumatic actuator with 10 psi span. The 2-way, normally open, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has a linear characteristic, stainless steel trim, high temp packing, and flanged end connections.
