278-03072 | Valve assy Hi Temp 2W NC 1/2" 1Cv Lin SS Trim FxF, 8" Pneu Act | Siemens
Flowrite 599 Series Valve Assembly features a high-temperature 8-inch pneumatic actuator with 10 psi span. The 2-way, normally closed, 1/2-inch, 1 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

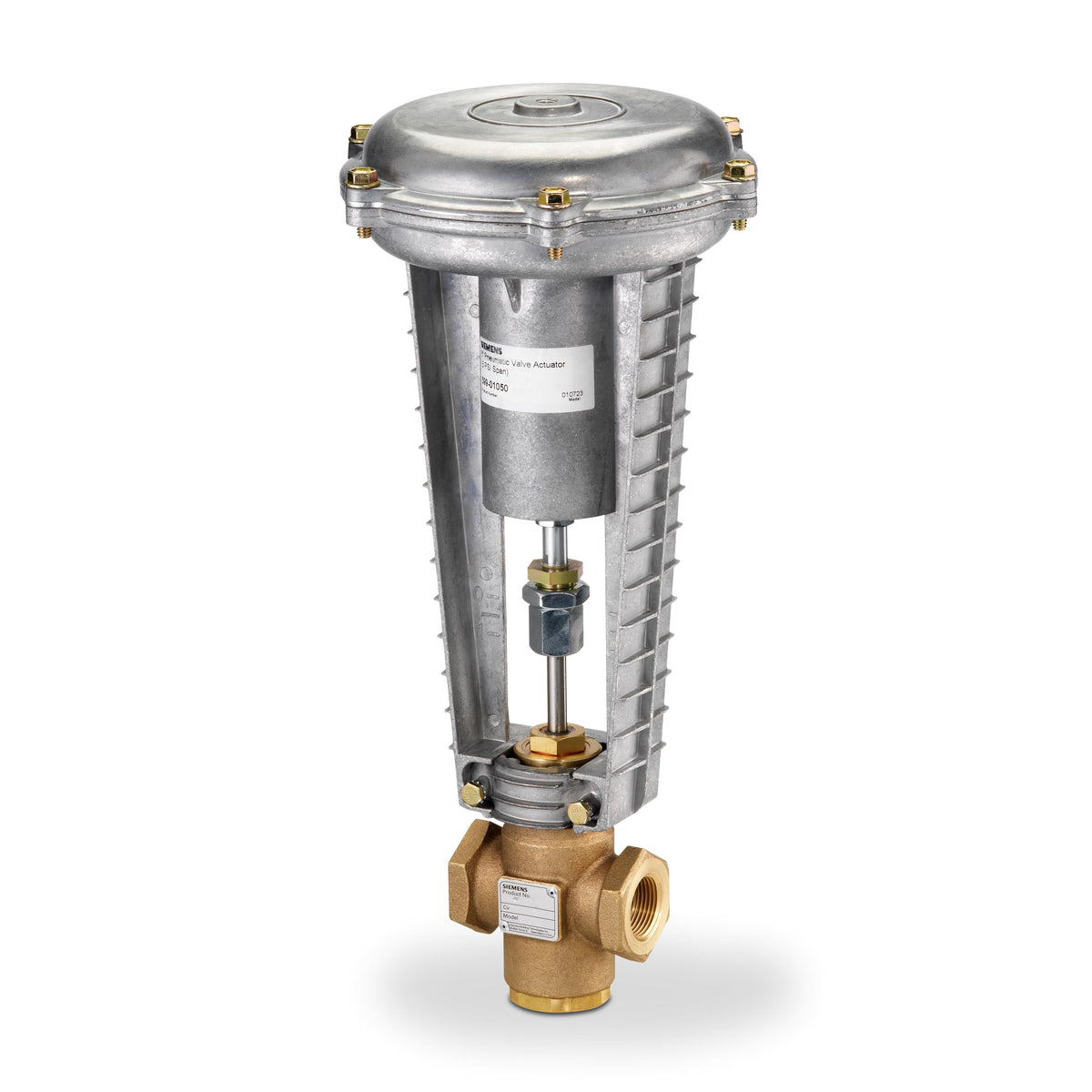

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 278-03072
Documents and manuals
Overview
Details for 278-03072
Valve assy Hi Temp 2W NC 1/2" 1Cv Lin SS Trim FxF, 8" Pneu Act
Specifications
- Valve Body Style
- Stroke-Globe
- Port Configuration
- 2-Way Normally closed
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- UNS CA 844 bronze
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- YES
- Medium temperature
- 20…337 ºF
- Stroke
- 3/4 in., 20 mm
- Valve Actuator Type
- Pneumatic
