277-06161    | Valve assy 3W Mix 3" 100Cv Eq Pct/Lin Bronze Trim Flanged 8
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SiemensSKU: 277-06161

Web Price:

$1,086.04
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

277-06161 | Valve assy 3W Mix 3" 100Cv Eq Pct/Lin Bronze Trim Flanged 8" Pneu Act | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, brass trim, and flanged end connections.

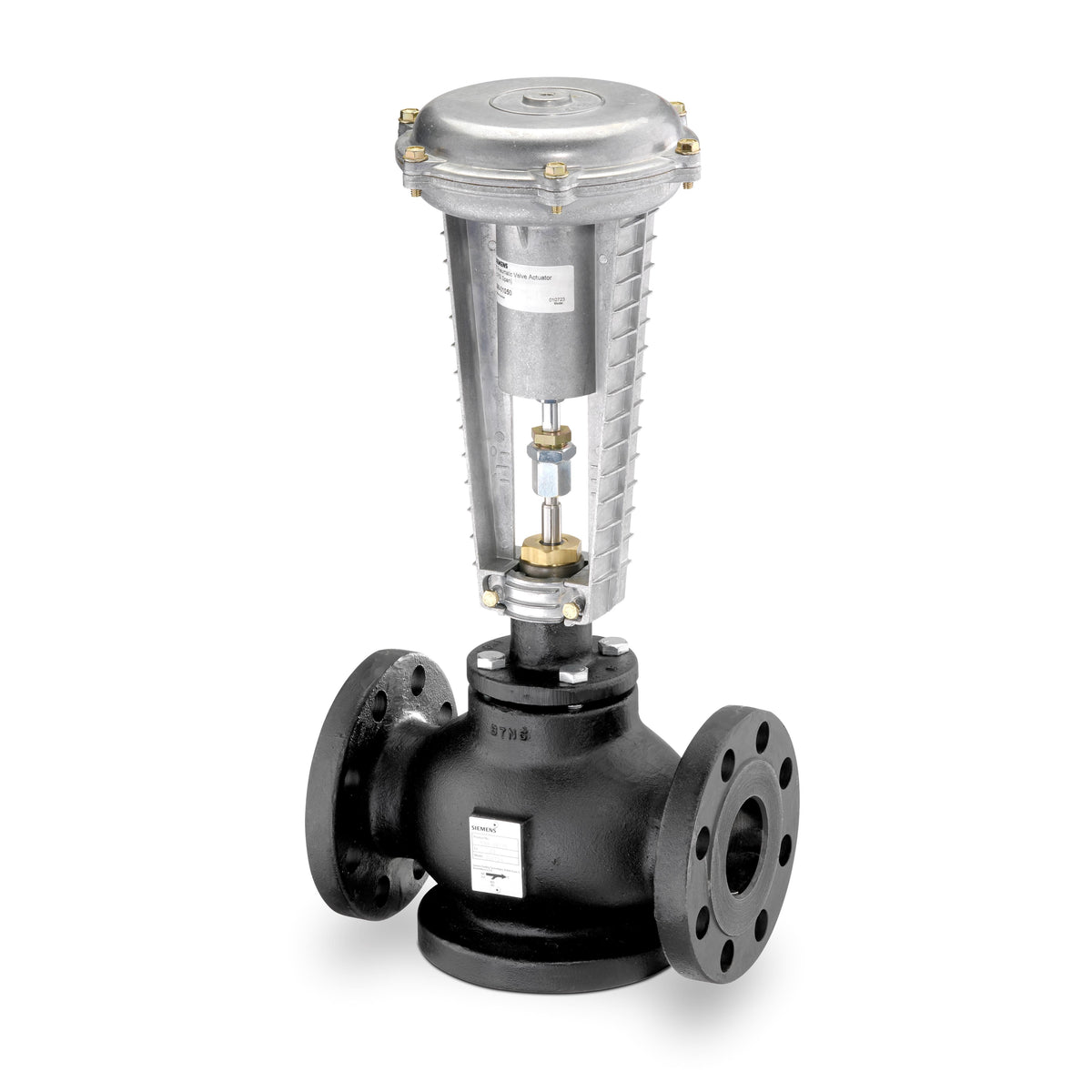

Siemens | 277-06161
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 277-06161

Overview

Details for 277-06161

Valve assy 3W Mix 3" 100Cv Eq Pct/Lin Bronze Trim Flanged 8" Pneu Act

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, bronze trim, and flanged end connections.

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
3-Way Mixing
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Bronze , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
