277-05930 | Valve assy 2W NC 2-1/2", 63Cv, Eq Pct SS Trim Flanged 8" Pneu Act | Siemens

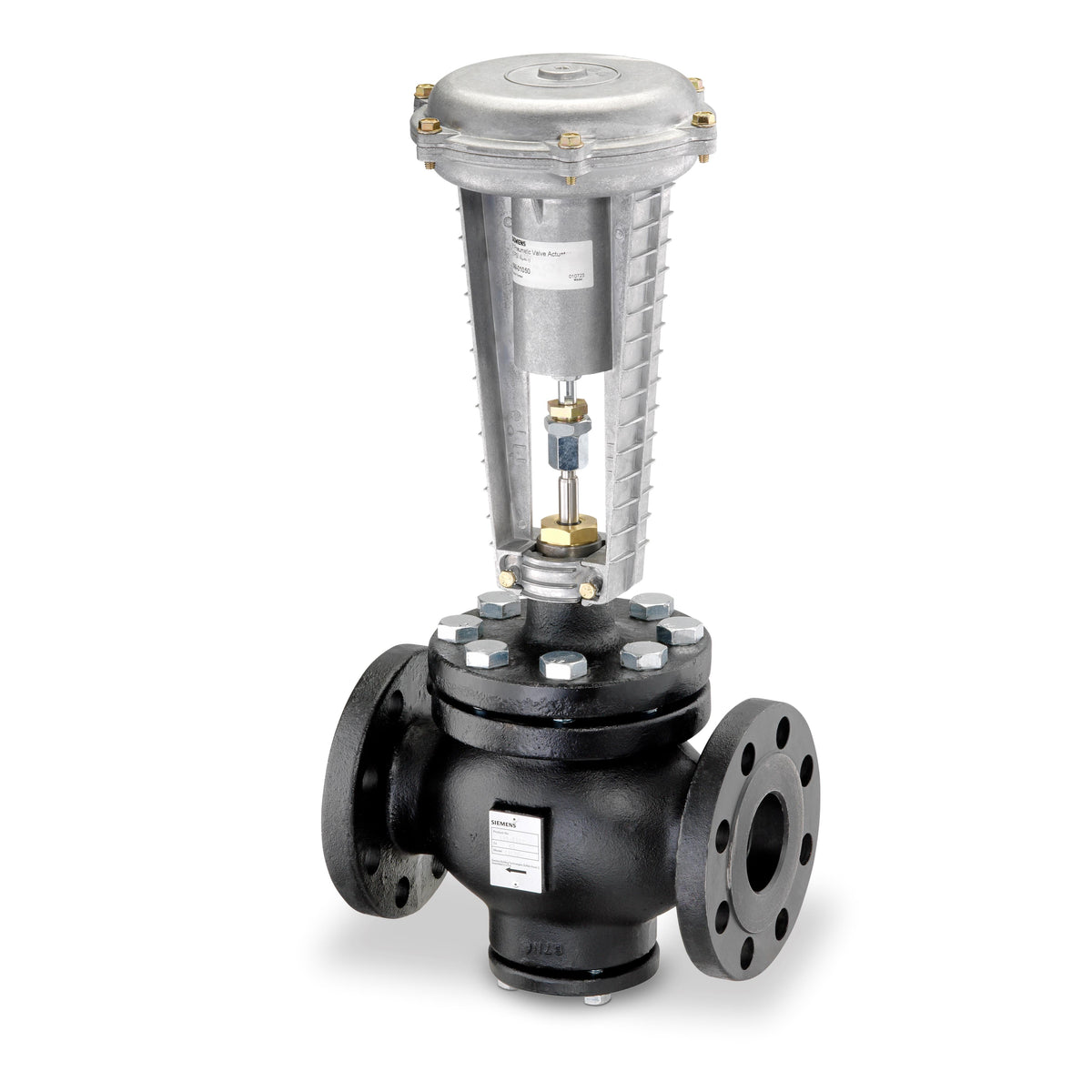

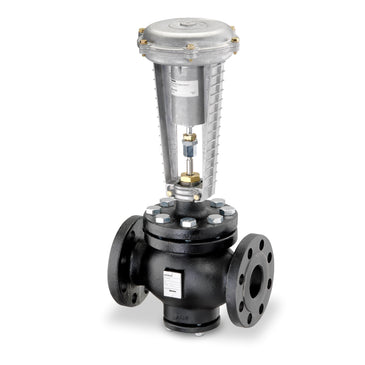

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 2-way, normally closed, 2-1/2-inch, 63 Cv valve assembly with 3/4-inch stroke is ANSI Class 250 and has an equal percentage characteristic, stainless steel trim, and flanged end connections.

Siemens | 277-05930
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 277-05930

Overview

Details for 277-05930

Valve assy 2W NC 2-1/2", 63Cv, Eq Pct SS Trim Flanged 8" Pneu Act

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally closed
End Connection
Flanged
Connecting thread
Direct-coupled universal bonnet
Material, valve body
Cast iron ASTM A126 Class B
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless steel ASTM A582 Type 303 , Plug: Bronze , Seat: Single seat , Normal Duty Packing: EPDM O-rings
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
