277-03078    | Valve assy 2W NC 1-1/4", 16Cv, Lin, SS Trim Hi Temp Pkg FxF, 8
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SiemensSKU: 277-03078

Web Price:

$585.92
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

277-03078 | Valve assy 2W NC 1-1/4", 16Cv, Lin, SS Trim Hi Temp Pkg FxF, 8" Pneu Act | Siemens

Flowrite 599 Series Valve Assembly features a 8-inch pneumatic actuator with 5 psi span. The 2-way, normally closed, 1-1/4-inch, 16 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

Siemens | 277-03078

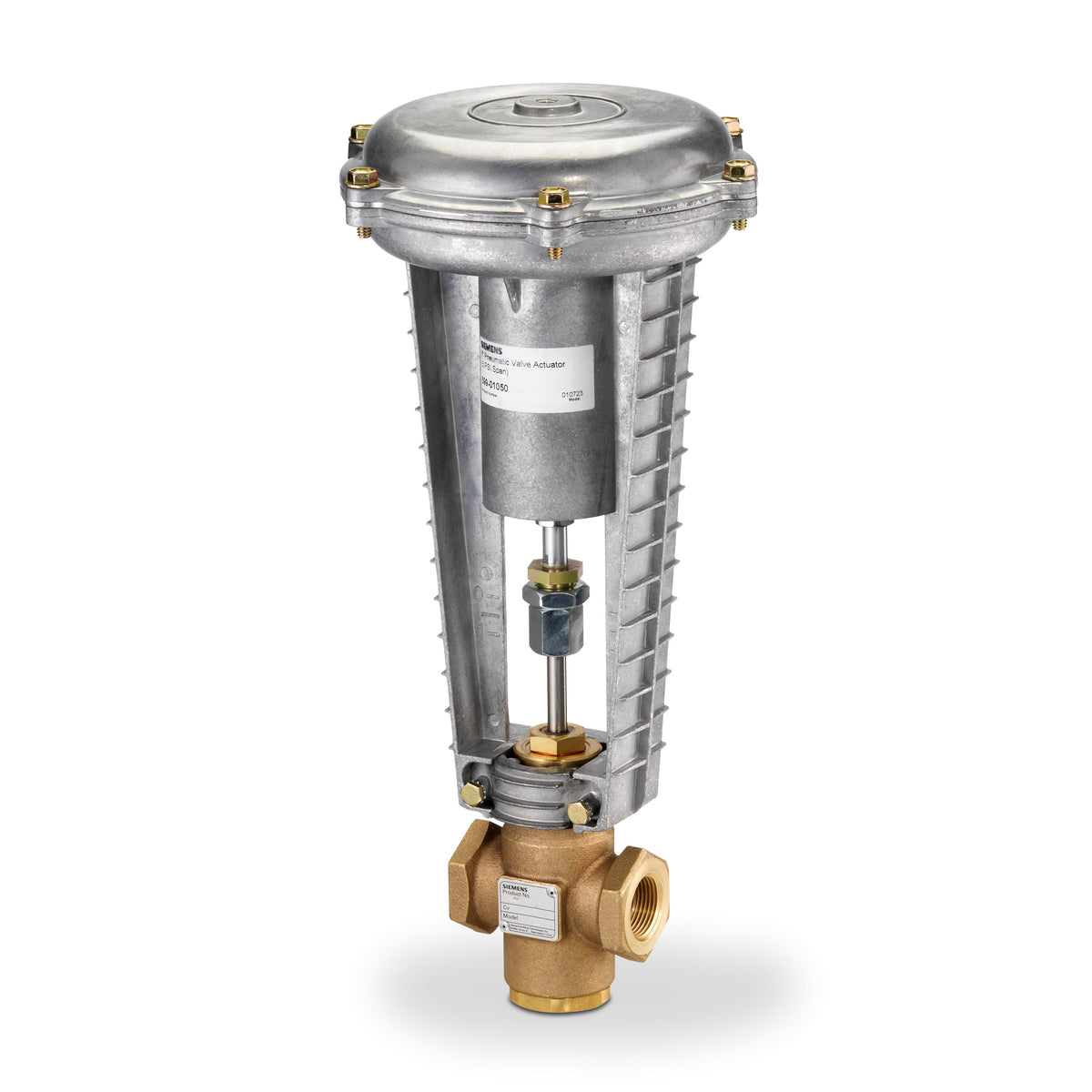

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 277-03078

Overview

Details for 277-03078

Valve assy 2W NC 1-1/4", 16Cv, Lin, SS Trim Hi Temp Pkg FxF, 8" Pneu Act

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
2-Way Normally closed
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
YES
Medium temperature
20…337 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
