276-03201 | Valve assy 3W Mix 1/2" 4Cv Eq Pct/Lin Brass Trim FxF, float El-Hydraul Act SR | Siemens
Flowrite 599 Series Valve Assembly features a floating control, spring return, 24 Vac electro-mechanical actuator. The 3-way, mixing, 1/2-inch, 4 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, brass trim, and female x female end connections.

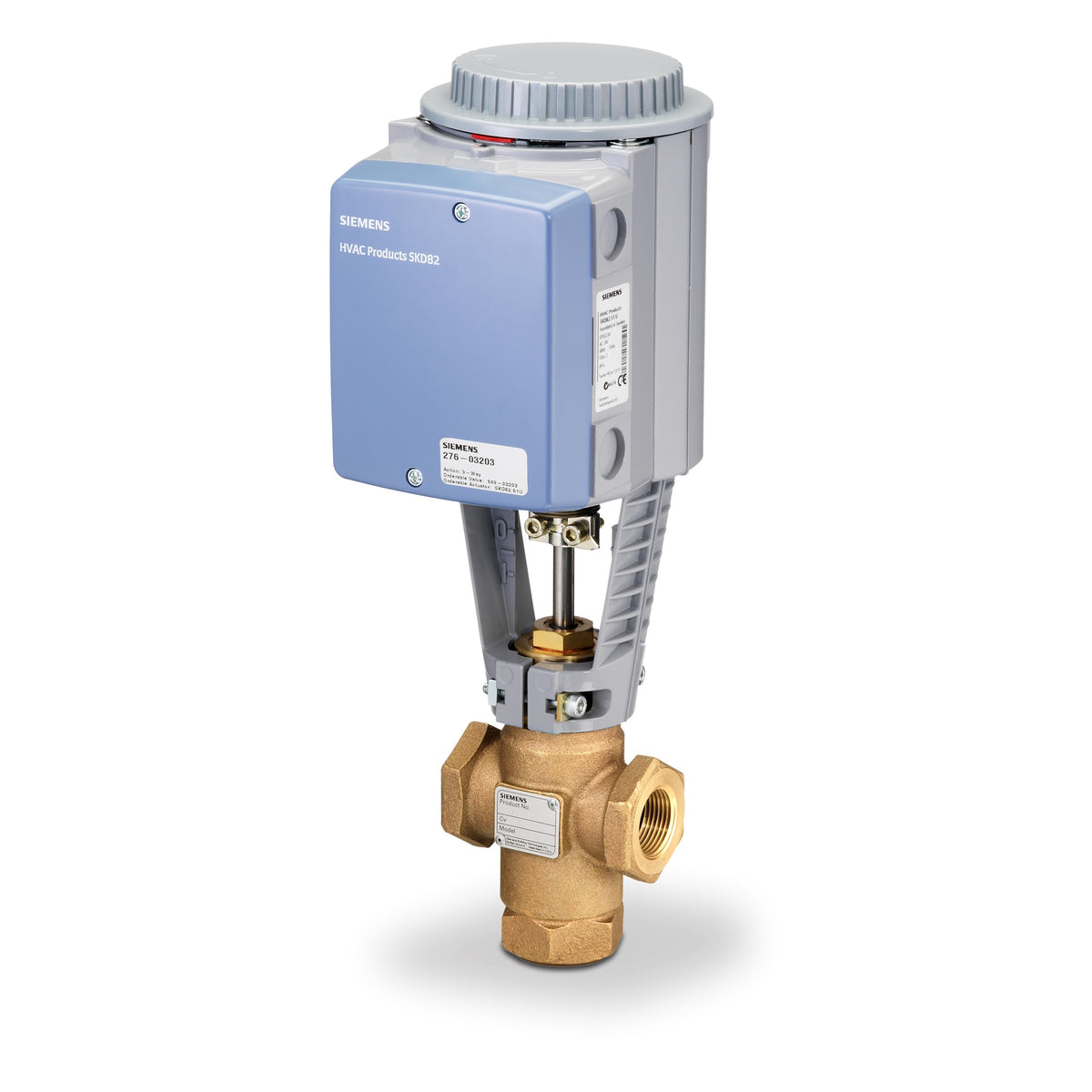

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 276-03201
Documents and manuals
Siemens 276-03201 Documents
Datasheet(3-Way 1/2-2-Inch Valve ANSI Class Bronze Body Submittal Sheet)Datasheet(Flowrite EA 599 Series SKD Electronic Valve 24 Vac 3-Position (Floating) Control Technical Instructions)Datasheet(Flowrite 599 Series 3-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet for Actuator(Electrohydraulic actuators SKD..) More Info
Overview
Details for 276-03201
Valve assy 3W Mix 1/2" 4Cv Eq Pct/Lin Brass Trim FxF, float El-Hydraul Act SR
Specifications
- Valve Body Style
- Stroke-Globe
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- UNS CA 844 bronze
- Material, inside set
- Body Trim: Brass , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium
- Water , Water with anti-freeze
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- NO
- Port Configuration
- 3-Way Mixing
- Medium temperature
- 20…250 ºF
- Ambient temperature, operation
- 5 to 130 °F, -15 to 55 °C
- Stroke
- 3/4 in., 20 mm
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
- Positioning time
- Power stroke 90 sec, Return stroke 90 sec, Spring return 8 sec
- Power consumption
- 15 VA
