275-03072 | Valve assy 2W NC 1/2" 1Cv Lin, SS Trim Hi Temp Pkg FxF float El-Hydraul Act NSR | Siemens

Flowrite 599 Series Valve Assembly features a floating control, non-spring return, 24 Vac electro-mechanical actuator. The 2-way, normally closed, 1/2-inch, 1 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, high temp packing, and female x female end connections.

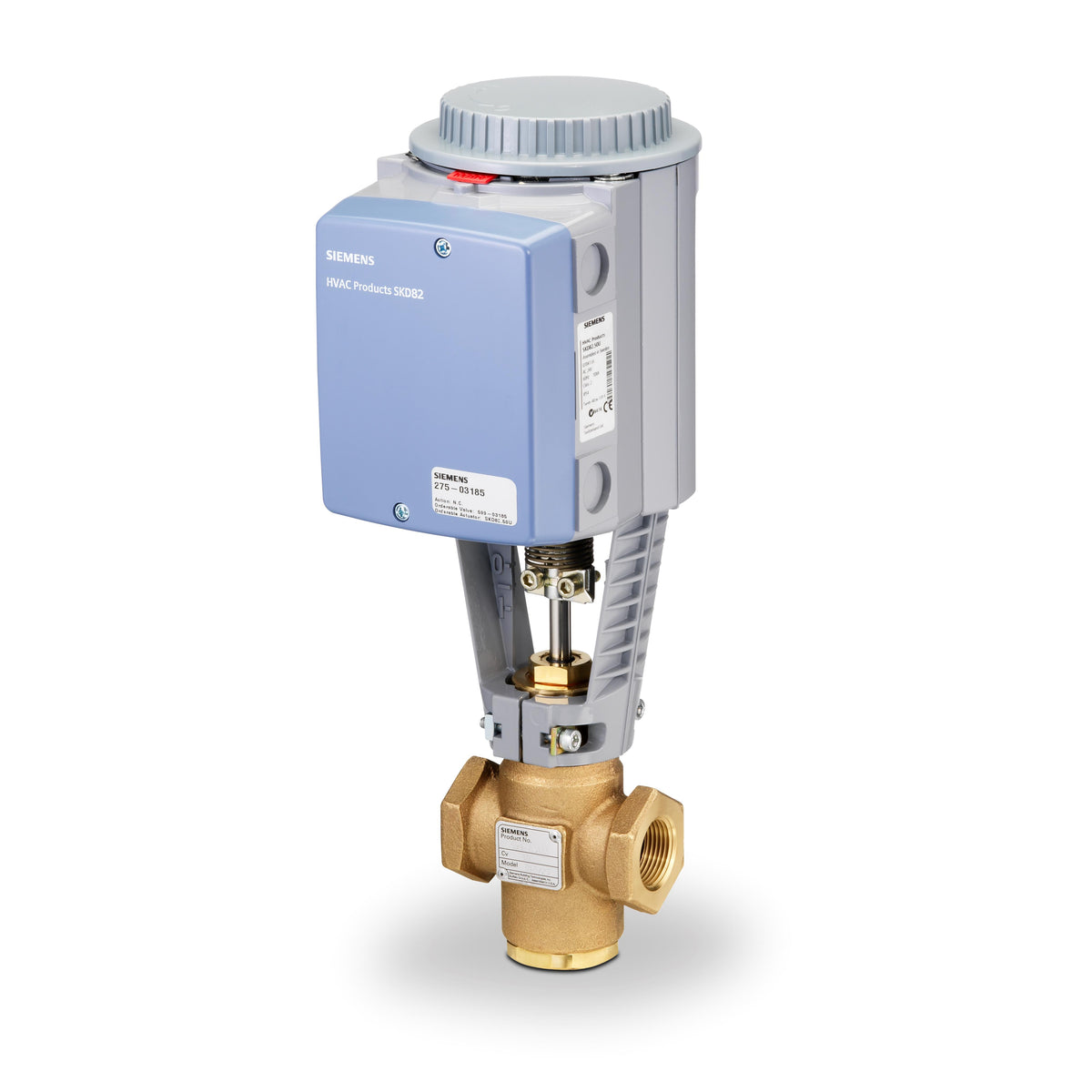

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 275-03072

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 275-03072 Documents

Datasheet(Flowrite EA 599 Series SKD Electronic Valve 24 Vac 3-Position (Floating) Control Technical Instructions)Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Datasheet for Actuator(Electrohydraulic actuators SKD..) More Info

Overview

Details for 275-03072

Valve assy 2W NC 1/2" 1Cv Lin, SS Trim Hi Temp Pkg FxF float El-Hydraul Act NSR

Specifications

Valve Body Style: Stroke-Globe
End Connection: FxF
Connecting thread: Direct-coupled universal bonnet
Material, valve body: UNS CA 844 bronze
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium: Saturated steam , Water , Water with anti-freeze , Steam
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: YES
Port Configuration: 2-Way Normally closed
Medium temperature: 20…337 ºF
Ambient temperature, operation: 5 to 130 °F, -15 to 55 °C
Stroke: 3/4 in., 20 mm
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Power stroke 90 sec, Return stroke 90 sec
Power consumption: 10 VA
