274-06166 | Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydraul Act SR | Siemens

Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), spring return, 24 Vac electro-hydraulic actuator. The 3-way, mixing, 3-inch, 100 Cv valve assembly with 3/4-inch stroke is ANSI Class 125 and has an equal percentage/linear characteristic, stainless steel trim, and flanged end connections.

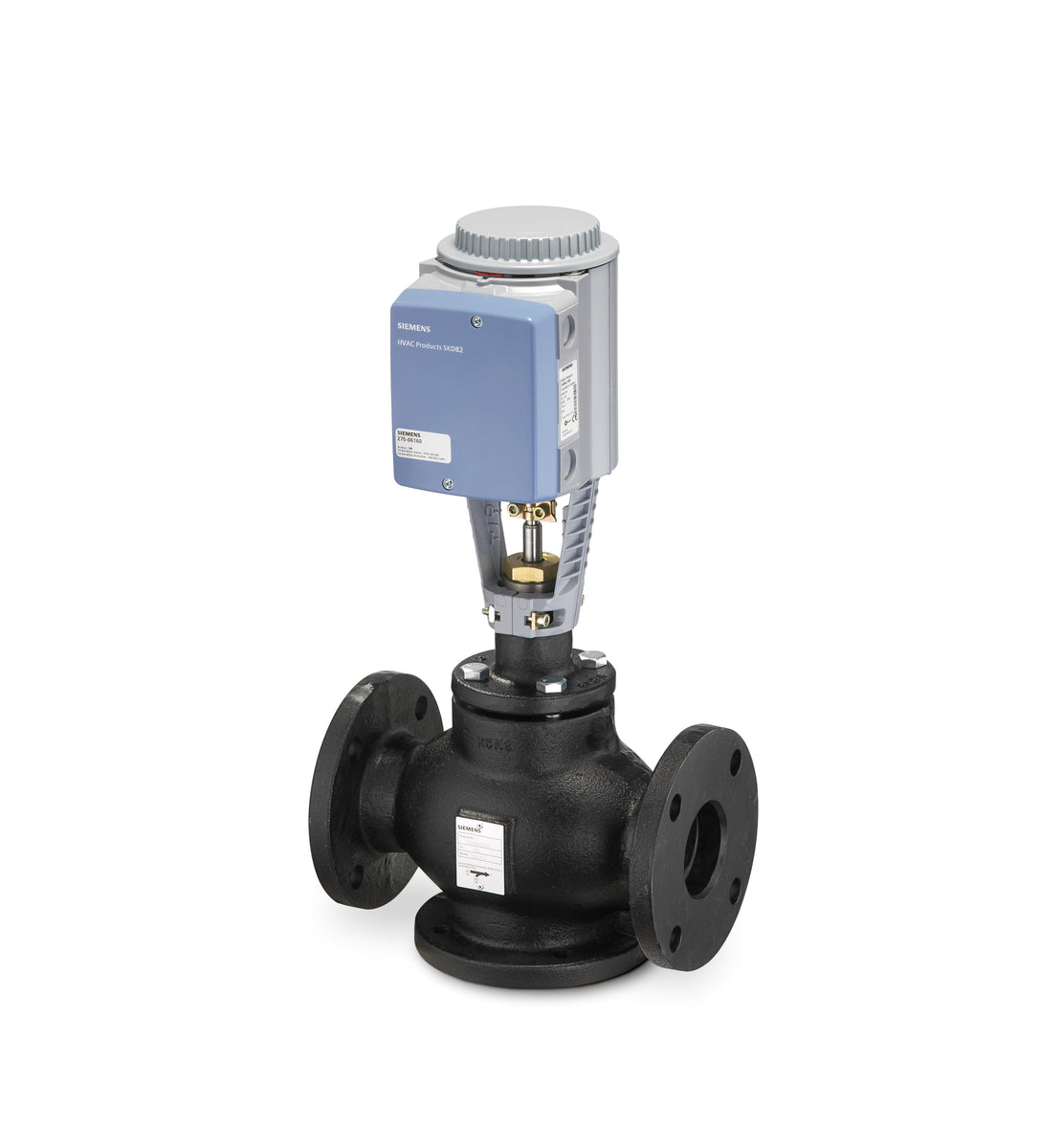

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 274-06166

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens 274-06166 Documents

Datasheet(Flowrite 599 Series 2-1/2 to 6-Inch Valves ANSI 125 Submittal Sheet)Datasheet(Flowrite SKD Valve Proportional Control Technical Instructions)Datasheet(Flowrite VF 599 Series. Three-Way Valves 2-1/2 to 6-inch Flanged Iron Body Technical Instructions)Datasheet(Flowrite 2-1/2 to 6-Inch Valves. Two-Way and Three-Way and Actuator Assembly Selection TB 256. Technical Bulletin)Datasheet for Actuator(Electrohydraulic actuators SKD..) More Info

Overview

Details for 274-06166

Valve assy 3W Mix 3" 100Cv Eq Pct/Lin SS Trim Flanged Prop El-Hydraul Act SR

Specifications

Valve Body Style: Stroke-Globe
End Connection: Flanged
Connecting thread: Direct-coupled universal bonnet
Material, valve body: Cast iron ASTM A126 Class B
Material, inside set: Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring
Medium: Water , Water with anti-freeze
Leakage rate: Class IV (0.01% of Cv)
Rangeability: >100:1
High temperature: NO
Port Configuration: 3-Way Mixing
Medium temperature: 20…250 ºF
Ambient temperature, operation: 5 to 130 °F, -15 to 55 °C
Stroke: 3/4 in., 20 mm
Valve Actuator Type: Electronic
Supply Voltage: 24 VAC
Positioning time: Power stroke 30 sec, Return stroke 15 sec
Power consumption: 17 VA
