270-03152    | Valve assy 3W Mix 2" 40Cv Eq Pct/Lin SS Trim FxF, 4
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: SiemensSKU: 270-03152

Web Price:

$868.46
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

270-03152 | Valve assy 3W Mix 2" 40Cv Eq Pct/Lin SS Trim FxF, 4" Pneu Act 10-15psi | Siemens

Flowrite 599 Series Valve Assembly features a 4-inch pneumatic actuator with 10-15 psi. The 3-way, mixing, 2-inch, 40 Cv valve assembly is ANSI Class 250 and has an equal percentage/linear characteristic, stainless steel trim, and female x female end connections.

Siemens | 270-03152

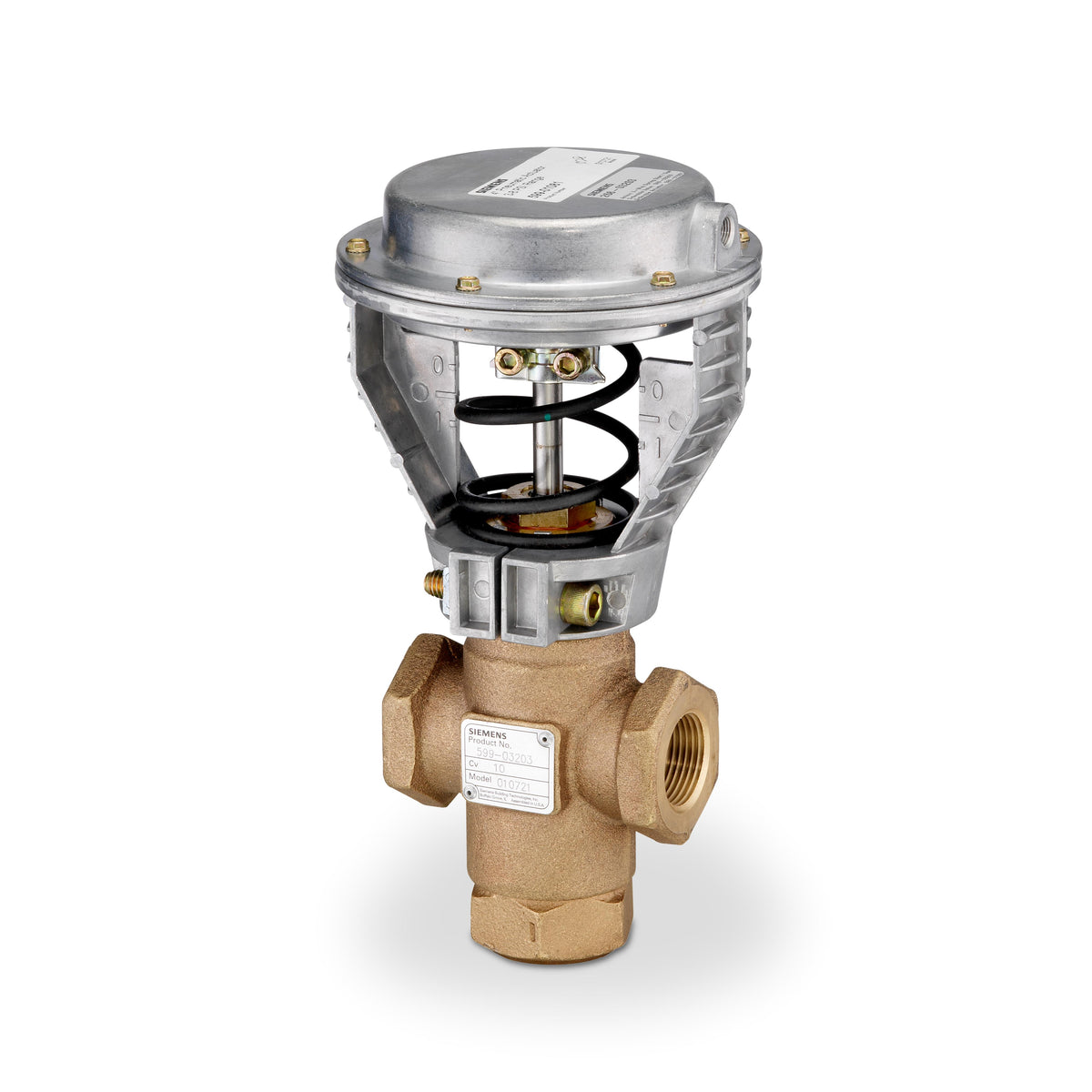

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 270-03152

Overview

Details for 270-03152

Valve assy 3W Mix 2" 40Cv Eq Pct/Lin SS Trim FxF, 4" Pneu Act 10-15psi

Specifications

Valve Body Style
Stroke-Globe
Port Configuration
3-Way Mixing
End Connection
FxF
Connecting thread
Direct-coupled universal bonnet
Material, valve body
UNS CA 844 bronze
Material, inside set
Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Packing: EPDM O-ring , Seat: Single seat metal-to-metal
Medium
Water , Water with anti-freeze
Leakage rate
Class IV (0.01% of Cv)
Rangeability
>100:1
High temperature
NO
Medium temperature
20…250 ºF
Stroke
3/4 in., 20 mm
Valve Actuator Type
Pneumatic
