267-03021 | Valve assy 2W NC 1/2", 4Cv, Lin, SS Trim FxF, Prop El-Hydraul Act NSR | Siemens
Flowrite 599 Series Valve Assembly features a proportional control (0 to 10 Vdc or 4 to 20 mA), non-spring return, 24 Vac electro-hydraulic actuator. The 2-way, normally closed, 1/2-inch, 4 Cv valve assembly is ANSI Class 250 and has a linear characteristic, stainless steel trim, and female x female end connections.

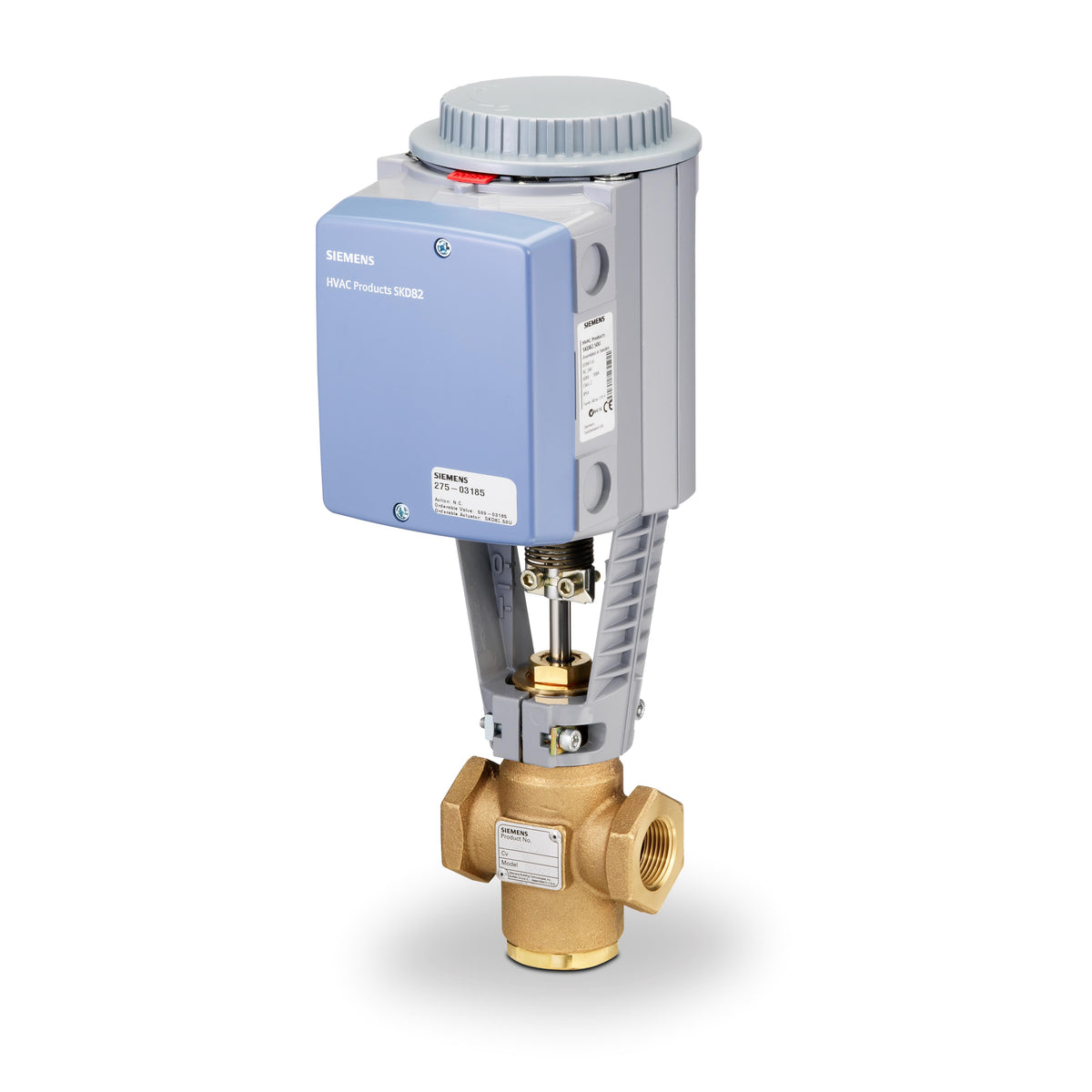

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 267-03021
Documents and manuals
Siemens 267-03021 Documents
Datasheet(Flowrite SKD Valve Proportional Control Technical Instructions)Datasheet(Flowrite 599 Series 2-way Valves 1/2 to 2-Inch Bronze Body. Technical Instructions)Datasheet(Flowrite Valve and Selection TB 255. Technical Bulletin)Installation instruction(SKD…U Electronic Valve Installation Instructions)Datasheet for Valve(Flowrite 599 Series 2-Way Valves. 1/2 to 2-Inch Threaded. ANSI Class 250. Bronze Body Submittal Sheet)Datasheet for Actuator(Electrohydraulic actuators SKD..) Installation Instructions More Info
Overview
Details for 267-03021
Valve assy 2W NC 1/2", 4Cv, Lin, SS Trim FxF, Prop El-Hydraul Act NSR
Specifications
- Valve Body Style
- Stroke-Globe
- End Connection
- FxF
- Connecting thread
- Direct-coupled universal bonnet
- Material, valve body
- UNS CA 844 bronze
- Material, inside set
- Body Trim: Stainless Steel , Stem: Stainless Steel ASTM A582 Type 303 , Normal Duty Packing: EPDM O-ring , Seat: Single seat metal-to-metal
- Medium
- Saturated steam , Water , Water with anti-freeze , Steam
- Leakage rate
- Class IV (0.01% of Cv)
- Rangeability
- >100:1
- High temperature
- NO
- Port Configuration
- 2-Way Normally closed
- Medium temperature
- 20…250 ºF
- Stroke
- 3/4 in
- Valve Actuator Type
- Electronic
- Supply Voltage
- 24 VAC
- Positioning time
- Power stroke 30 s, Return stroke 15 s
- Power consumption
- 18 VA
