599-07337 | 599-07337 4 PICV ANSI 250 | Siemens

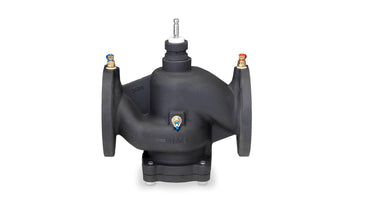

Pressure Independent Control Valve, 4 inch, ANSI 250, 370 GPM maximum flow (field adjustable as low as 63 GPM), w/ 3 P/T ports

Siemens | 599-07337
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 599-07337
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Siemens 599-07337 Documents

Datasheet(Pressure Independent Control Series 2-Way Flanged Valves and Electromotoric Valve Actuators Specification Sheet)Datasheet(Pressure Independent Control Series. Two-Way Cast Iron Flanged Bodies. ANSI 125 and 250 Technical Instructions)Datasheet(Mounting instruction for O-ring)Declarations and Certificates(Control valve with flanged connections) More Info

Overview

Details for 599-07337

599-07337 4 PICV ANSI 250

Pressure Independent Control Valve, 4 inch, ANSI 250, 370 GPM maximum flow (field adjustable as low as 63 GPM), w/ 3 P/T ports

Specifications

Valve Size
4 in
Port Configuration
2-Way Normally open
End Connection
Flanged
Material, valve body
Cast Iron
Trim Material
Brass
Material, inside set
Stem, Spring, Seat: Stainless Steel , Plug: Brass (DZR) , Regulator: Stainless Steel , Seals: EPDM (peroxide cured)
Flow Characteristic
Linear
Medium
Water , Water with anti-freeze
Max GPM
370 gpm
Min GPM
63 gpm
Preset GPM
370 gpm
Pressure Class
ANSI 250
Leakage rate
Class IV (0.01% of Cv)
Max. Differential Pressure, Liquid
90 psi
Medium temperature
34…250 ºF
Stroke
1-1/2 in., 40 mm
Close-off Pressure
100 psi
Dimensions (W x H x D)
14.4 x 11.76 x 10 in
